Faulhaber: Brushless DC-Servomotors 2622...B SC Series
Faulhaber: Brushless DC-Servomotors 2622...B SC Series

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 2622...B-SC


Model No.:

.

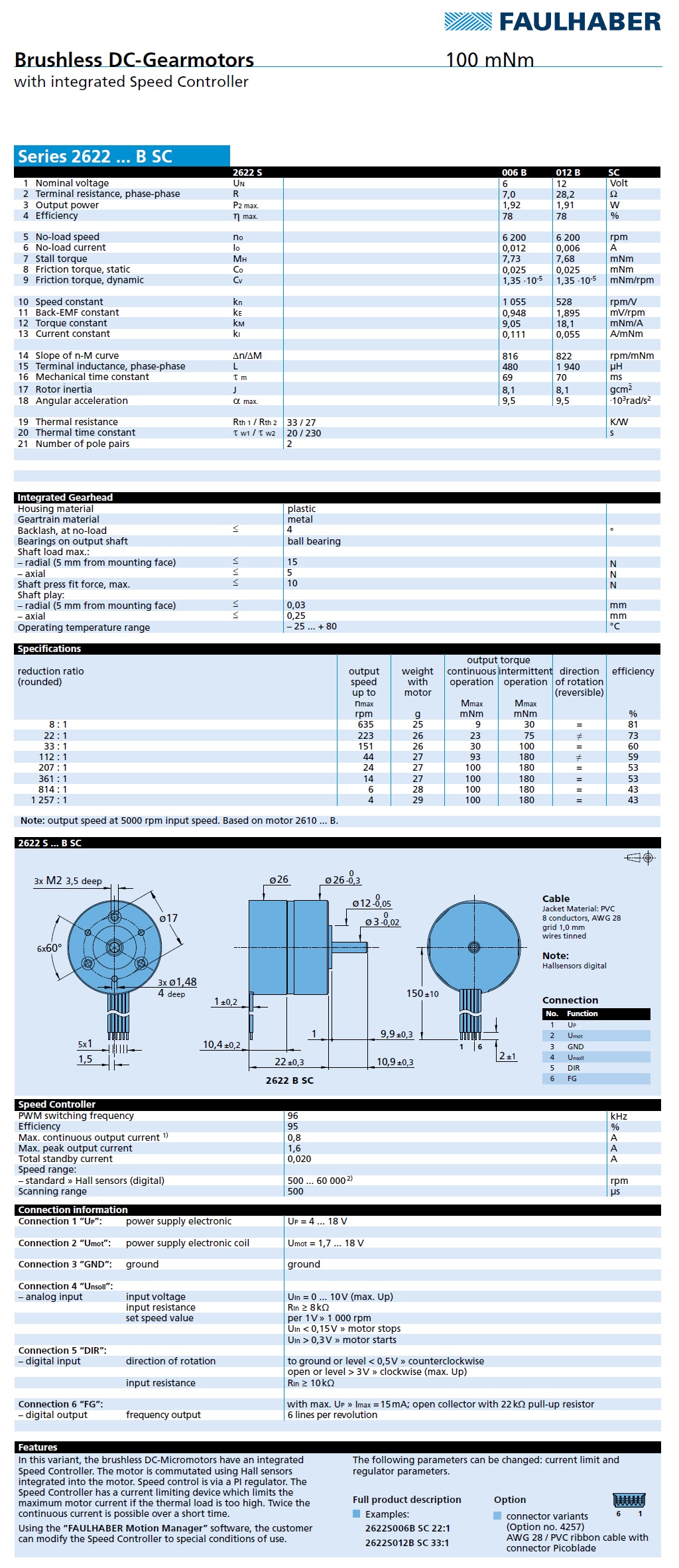

Description Specifications and Drawings


Brushless DC-Gearmotor Series 2622...B SC

Motors with integrated Speed Controller (Diameter: 26 mm, Length: 22 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Gearmotors with integrated Speed Controller

The brushless flat DC-Micromotors are also available as gearmotor version and optionally with integrated Speed Controller.

Speed control is achieved using the on board PI controller with an external command voltage.

Features and Benefits:

  • Integrated drive electronics

  • Extremely compact

  • Very robust construction

  • Easy to use

  • Integrated current limiting

  • Control parameters can be tuned to the application

Model No.: 2622S006B SC 112:1, 2622S006B SC 1257:1, 2622S006B SC 207:1, 2622S006B SC 22:1, 2622S006B SC 33:1, 2622S006B SC 361:1, 2622S006B SC 8:1, 2622S006B SC 814:1, 2622S012B SC 112:1, 2622S012B SC 1257:1, 2622S012B SC 207:1, 2622S012B SC 22:1, 2622S012B SC 33:1, 2622S012B SC 361:1, 2622S012B SC 8:1, 2622S012B SC 814:1
