Faulhaber: Brushless DC-Servomotors 3153...BRC Series
Faulhaber: Brushless DC-Servomotors 3153...BRC Series

Alternate View




Price: (Members Only)


Order #: 3153...BRC


Model No.:


Qty:

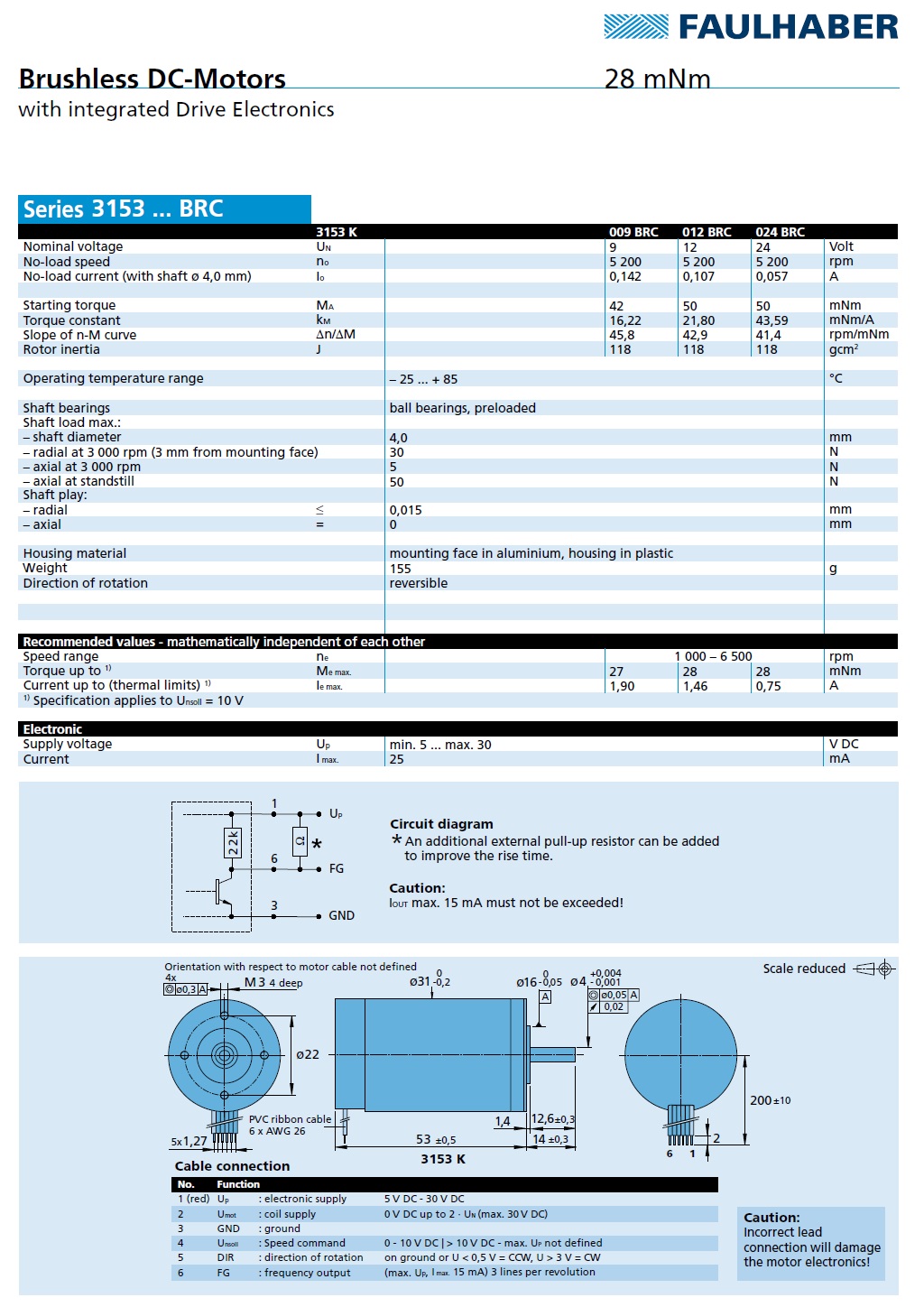

Description Specifications and Drawings


Brushless DC-Servomotors: Series 3153...BRC

Motors with integrated Drive Electronics (Diameter: 31 mm, Length: 53 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Motors with integrated Speed Controller

These new brushless DC motors combine the advantages of a slotless brushless motor with dedicated, high precision, speed control electronics.

Speed control is achieved using the on board PI controller with an external command voltage.

Features and Benefits:

  • Integrated drive electronics

  • Extremely compact

  • Very robust construction

  • Easy to use

  • Integrated current limiting

  • Control parameters can be tuned to the application

Model No.: 3153K009BRC, 3153K012BRC, 3153K024BRC
