Faulhaber: Brushless DC-Servomotors 3242...BX4 SC Series
Faulhaber: Brushless DC-Servomotors 3242...BX4 SC Series

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 3242...BX4-SC


Model No.:

.

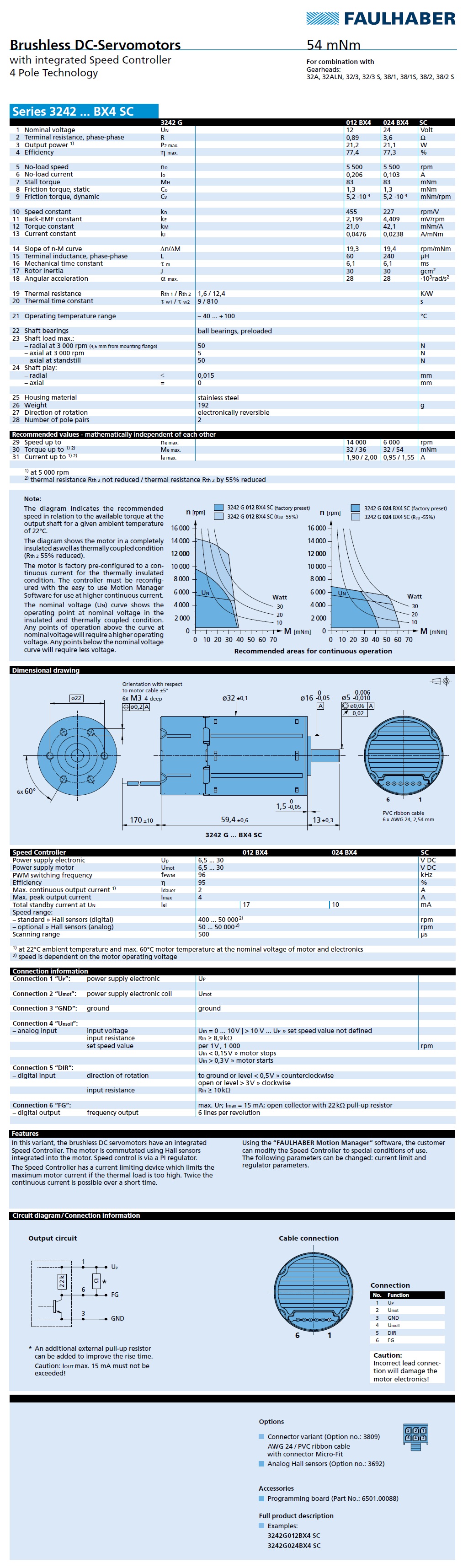

Description Specifications and Drawings


Brushless DC-Servomotors: Series 3242...BX4 SC

Motors with Integrated Speed Controller. 4 Pole Technology (Diameter: 32 mm, Length: 59.4 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Motors with integrated Speed Controller

These new brushless DC motors combine the advantages of a slotless brushless motor with dedicated, high precision, speed control electronics.

Speed control is achieved using the on board PI controller with an external command voltage.

Features and Benefits:

  • Very compact dimensions

  • Wide speed range

  • Very smooth speed control

  • Simple cabling

  • No EMI between motor and controller

  • Extremely long operational lifetime

  • Many series available in simple 2-wire configuration


Model No.: 3242G012BX4 SC, 3242G024BX4 SC
