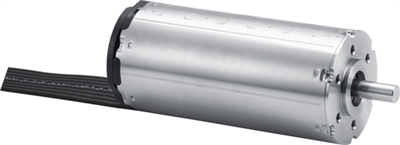

Faulhaber: Brushless DC-Servomotors (3268 BX4 Series + Encoder)
4 Pole Technology
Brushless DC-Motors
Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.
Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.
Brushless DC-Servomotors
FAULHABER Brushless DC-Servomotors are designed for demanding applications where compact size and high performance are key. They are available in high torque 4-Pole or high power 2-Pole versions
FAULHABER specializes in compact functional integration and many motors are available with integrated drive electronics, encoders, and analog hall sensors, which can in many cases replace the need for an encoder.
Features and Benefits:
High efficiency slotless design
High-torque or high-speed with small size and low weight
Highly dynamic acceleration and deceleration
Low noise
Available with a wide range of sensor options or sensorless

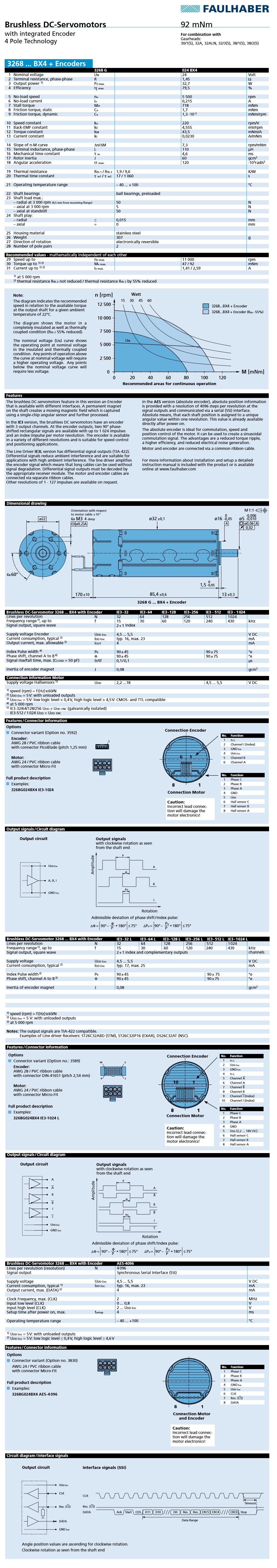

3268 BX4 AES Specifications:
Diameter (mm): 32
Length (mm): 85.4
Speed up to (rpm): 11,000
Stall torque (mNm): 718
Technology: Absolute Encoder
3268 BX4 IE3 Specifications:
Technology: Encoder
3268 BX4 IE3L Specifications:
Technology: Encoder, Line Driver
Series: 3268 BX4 AES, 3268 BX4 IE3, 3268 BX4 IE3L
