Faulhaber: Planetary Gearheads (32A Series)

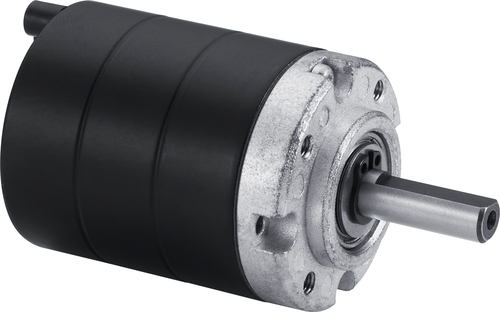

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

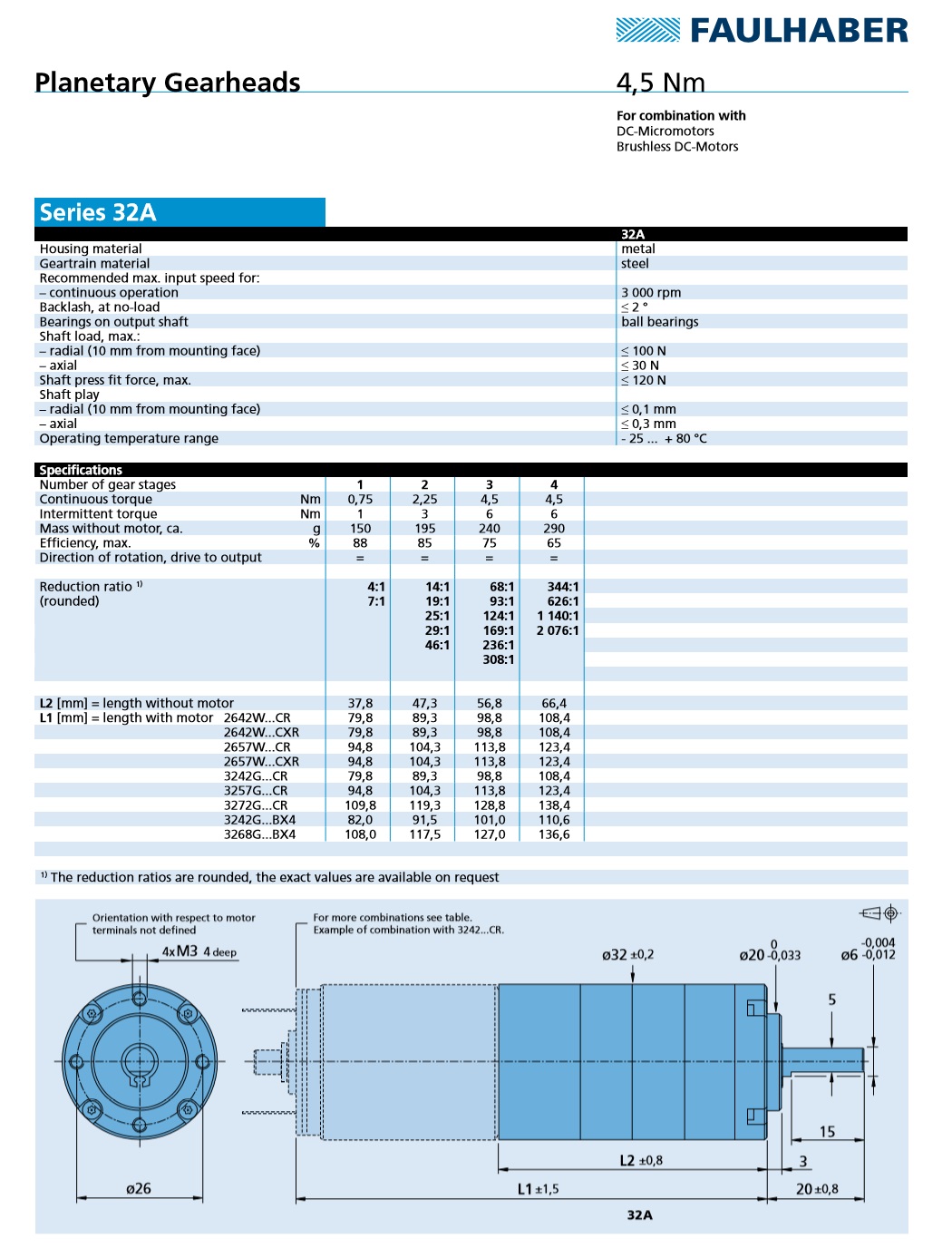

Specifications:

  • Diameter (mm): 32

  • Standard Ratios (from...to): 4:1 ... 2,076:1

  • Torque cont. duty (mNm): 4,500

  • Intermittent duty Torque (mNm): 6,000

Model No.: 32A 4:1, 32A 7:1, 32A 14:1, 32A 19:1, 32A 25:1, 32A 29:1, 32A 46:1, 32A 68:1, 32A 93:1, 32A 124:1, 32A 169:1, 32A 236:1, 32A 308:1, 32A 344:1, 32A 626:1, 32A 1140:1, 32A 2076:1
