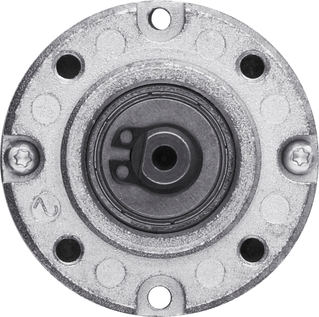

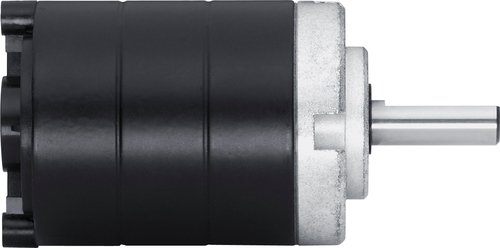

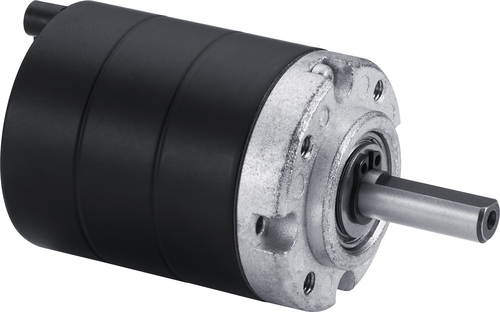

Faulhaber: Planetary Gearheads (32ALN Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

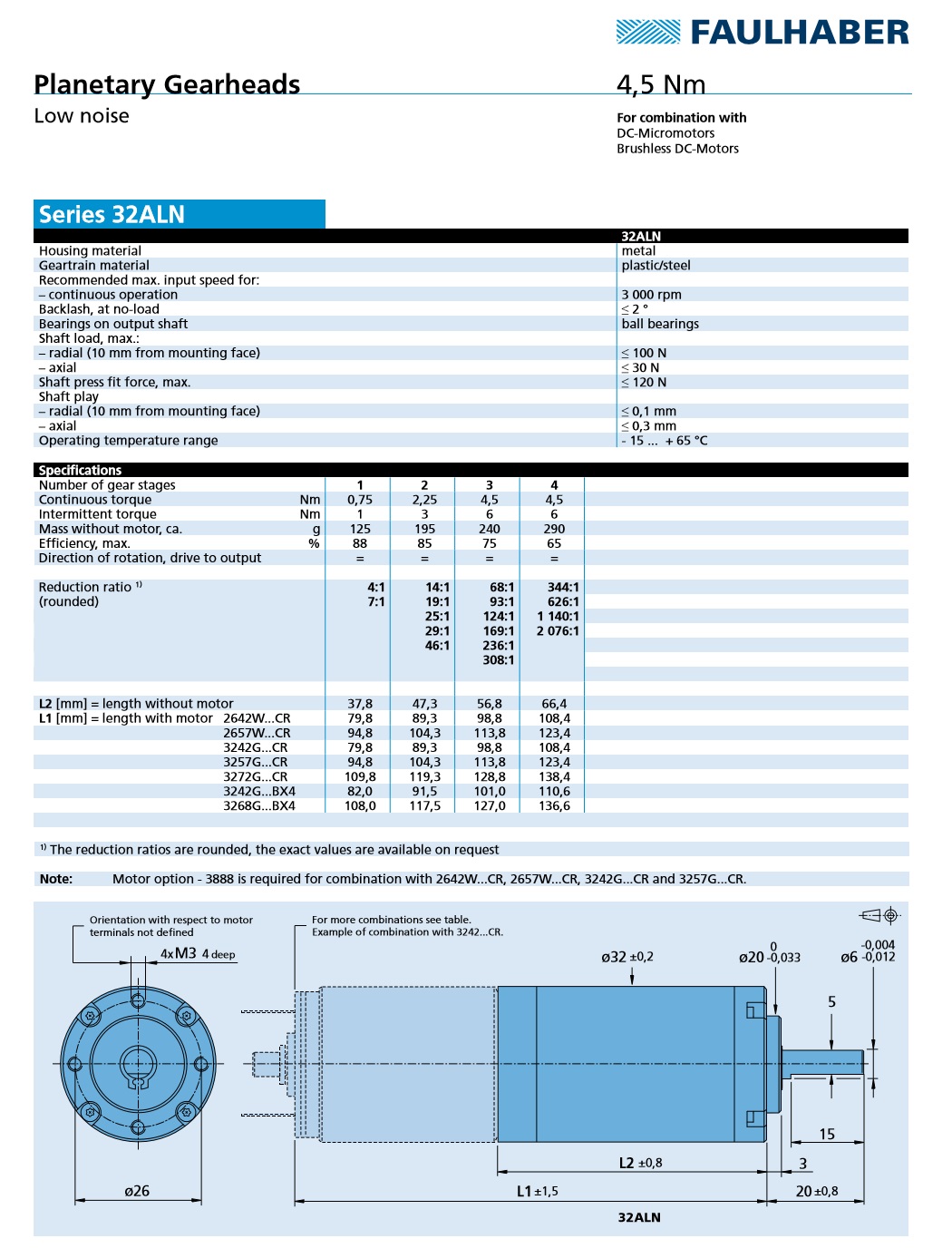

Specifications:

  • Diameter (mm): 32

  • Standard Ratios (from...to): 4:1 ... 2,076:1

  • Torque cont. duty (mNm): 4,500

  • Intermittent duty Torque (mNm): 6,000

Model No.: 32ALN 4:1, 32ALN 7:1, 32ALN 14:1, 32ALN 19:1, 32ALN 25:1, 32ALN 29:1, 32ALN 46:1, 32ALN 46:1, 32ALN 93:1, 32ALN 124:1, 32ALN 169:1, 32ALN 236:1, 32ALN 308:1, 32ALN 344:1, 32ALN 626:1, 32ALN 1140:1, 32ALN 2076:1
