AMP: DC Microstep Drive (3540 Series) 12-42VDC
AMP: DC Microstep Drive (3540 Series) 12-42VDC


Price: (Members Only)


Order #: 3540


Model No.:


Qty:

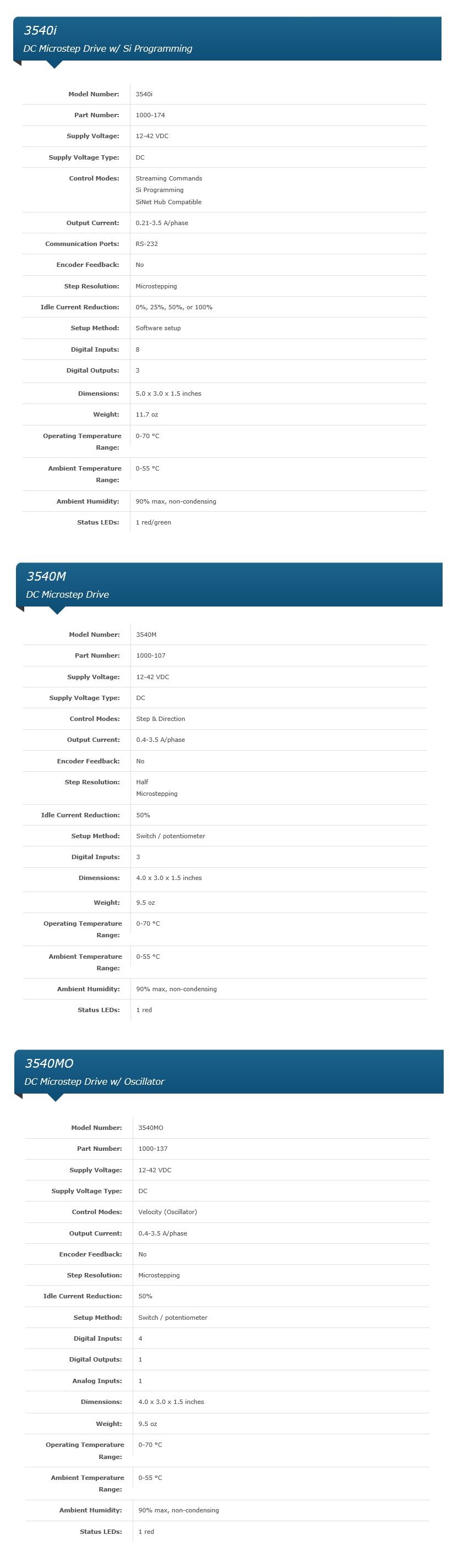

Description Specifications and Drawings


AMP: DC Microstep Drive (3540 Series) 12-42VDC

Step Motor Drives

Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

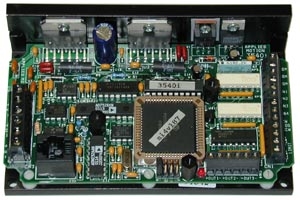

3540i: DC Microstep Drive w/ Si Programming

The 3540i step motor drive is a programmable, microstepping, bipolar stepper drive suitable for a wide range of motion control applications. It includes an intuitive, user-friendly programming language for creating powerful indexing programs that are stored in the drive and allow the drive and motor to run stand-alone. 8 digital inputs and 3 digital outputs facilitate interfacing to other devices, such as PLCs, sensors, switches, etc.

The 3540i includes Applied Motion’s easy-to-use Si Programmer™ software for the rapid development of stand-alone motion control programs. The 3540i can also be controlled via streaming serial commands using Applied Motion’s Serial Command Language (SCL).

Features:

  • On-board indexer

  • Si programming

  • Microstepping

  • Idle current reduction

  • Programmable motor current

  • 8 user-programmable inputs

  • 3 user-programmable outputs

  • Screw terminals

3540M: DC Microstep Drive

The 3540M step motor drive is a microstepping, bipolar stepper drive for step & direction applications. There are multiple step resolutions to choose from, and custom resolutions are available for OEM applications. Step resolutions and motor current are set via on-board dip switches, and the 3540M includes an idle current reduction feature to reduce motor current to 50% at standstill. A self-test feature is also included that automatically rotates the motor 1/2 revolution back and forth, which can aid in system setup and troubleshooting. The 3540M is compatible with a variety of 2-phase stepper motors.

Features:

  • Step & direction inputs

  • Microstepping

  • Idle current reduction

  • Enable input

  • Screw terminals

  • Self test feature

3540MO: DC Microstep Drive w/ Oscilla

The 3540MO step motor drive is a microstepping, bipolar stepper drive for velocity-control applications, such as conveyors and labelers. The 3540MO steps at a fixed microstep resolution of 12,800 steps/rev with a 1.8º step motor (1/64 step). Motor speed is controlled by either on-board potentiometers or via external potentiometer wired to the drive’s analog input. Starting/stopping the motor and direction of rotation are controlled by digital inputs. The drive also includes an enable input and a digital tach output function for monitoring motor speed. The 3540MO can also be used with potentiometer-type joysticks for joystick control of the motor in both directions, forward and reverse.

Features:

  • On-board oscillator

  • Microstepping

  • Idle current reduction

  • Run/stop & direction inputs

  • Two speed ranges

  • Enable input

  • Tach output

  • On-board potentiometer

  • External speed control

Model No.: 3540i, 3540M, 3540MO
