DELTA TAU: TERMINAL Block (ACC-8P)
DELTA TAU: TERMINAL Block (ACC-8P)

Alternate View



Price: (Members Only)

Quantity in Stock:8

Order #: 3A0-FLKM60-000
Qty:

Description Specifications and Drawings


* In overseas warehouse, about 1 week lead time for this Model.


ACC-8P


Part No.:
3A0-FLKM60-000

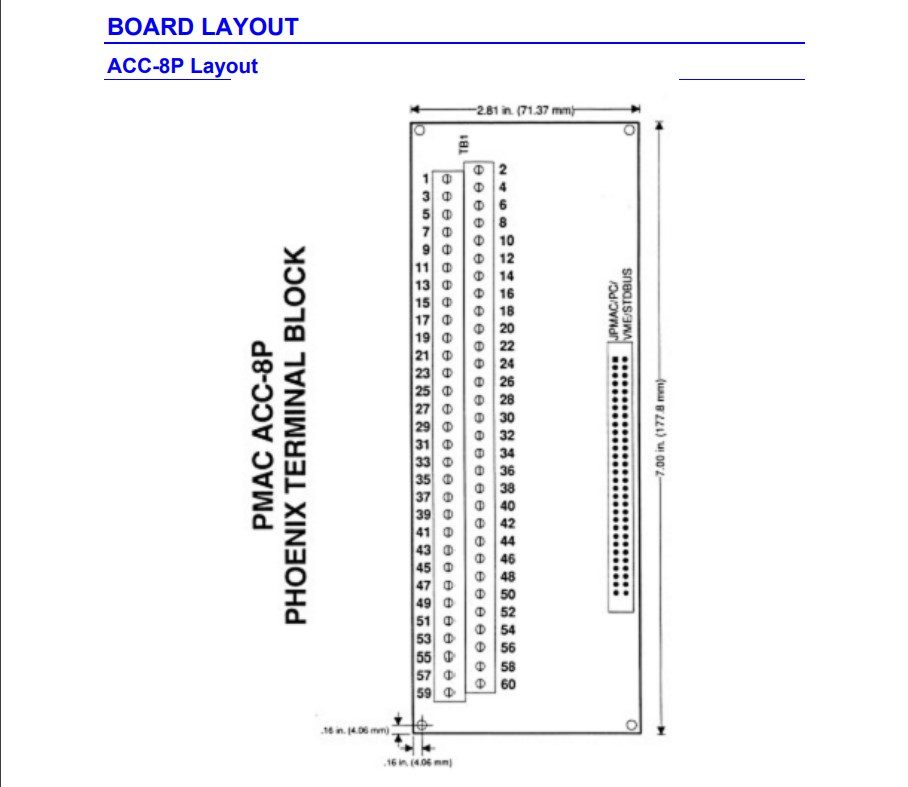

The Accessory 8P (ACC-8P) is a 60-pin Phoenix Terminal Block which is supplied with a DIN rail mount and 16” flat cable.

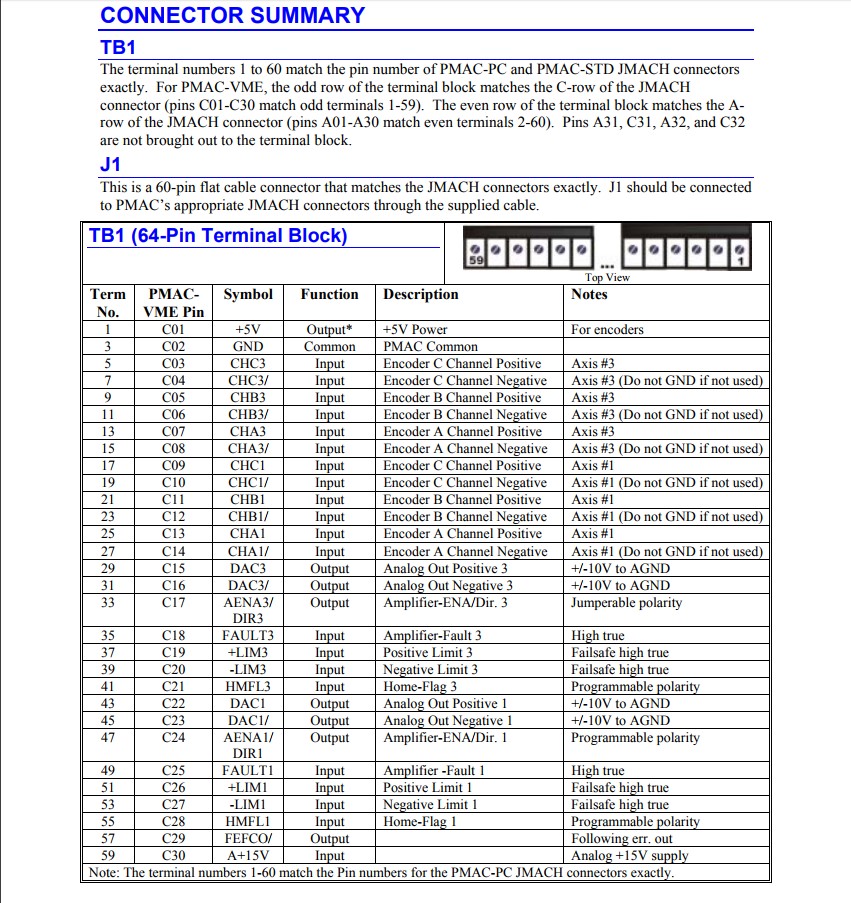

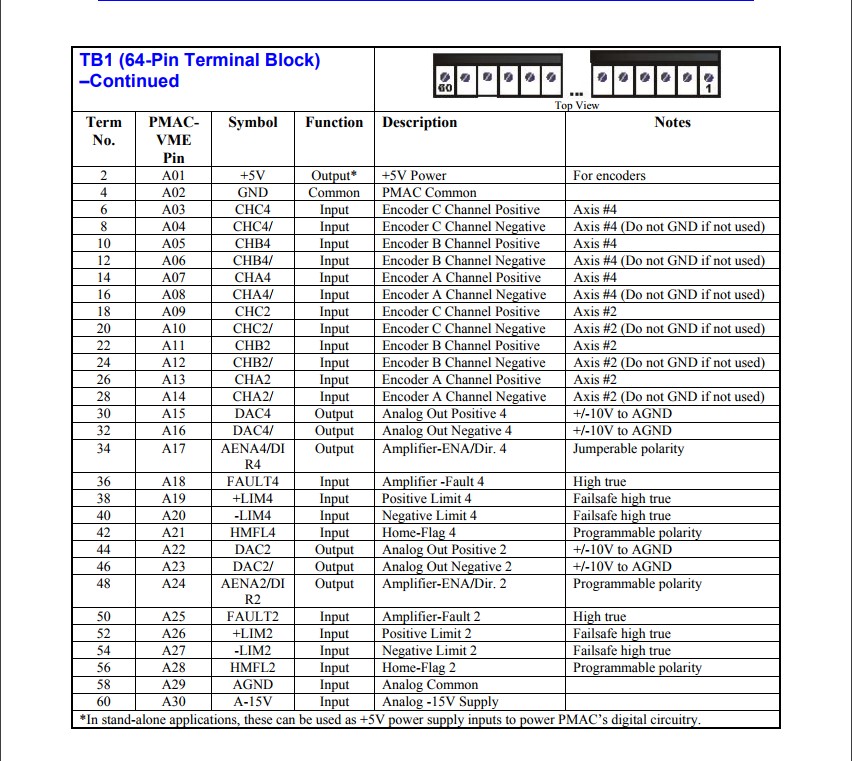

ACC-8P provides a convenient means for routing PMAC’s JMACH connector signals and power supply lines to a terminal block.
If the following conditions are required, it is recommend that PMAC’s ACC-8D is used instead of ACC- 8P:

• Third-phase generator for two commutated motors (ACC-8D Option 1)
• 40W linear amplifiers interface (ACC-8D Option 4)
• V-to-F converter interface (ACC-8D Option 2), and
• Optically isolated encoder interface board (ACC-8D Option 6)
• Easy connection through flat cables to Hewlett-Packard or compatible encoders or handwheels

PMAC(1) 4-channel breakout board, monolithic terminal
block (must specify Opt P or V)
