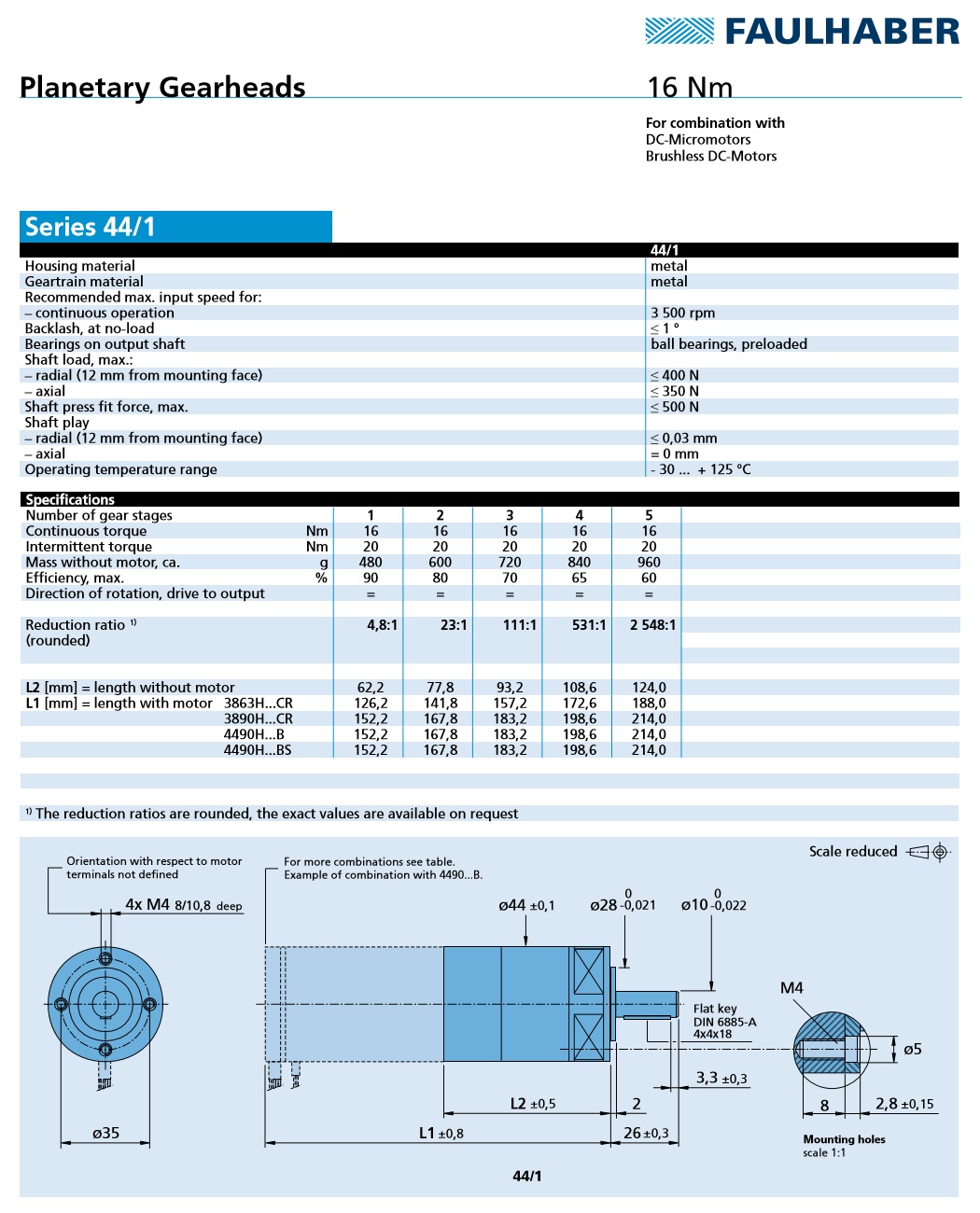

Description Specifications and Drawings

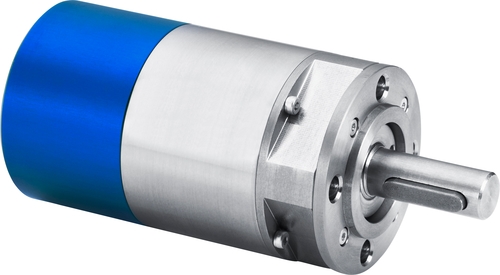

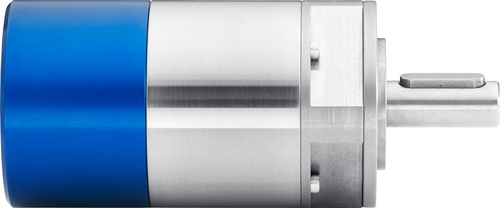

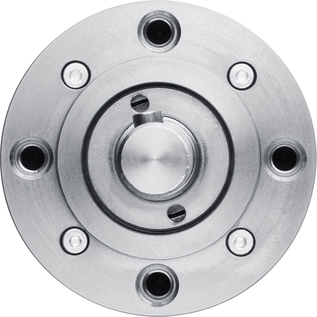

Faulhaber: Planetary Gearheads (44/1 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 44

  • Standard Ratios (from...to): 4.8:1 ... 2,548:1

  • Torque cont. duty (mNm): 16,000

  • Intermittent duty Torque (mNm): 20,000

Model No.: 44/1 4,8:1, 44/1 23:1, 44/1 111:1, 44/1 531:1, 44/1 2548:1
