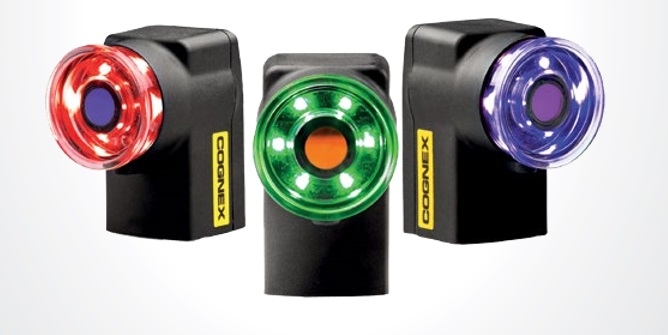

Cognex: Checker Vision Sensors (4G Series)
Value-line vision sensors provide a superior solution to photoelectric sensors
Checker Vision Sensor Features
The Checker® vision sensor is an award winning all-in-one industrial sensor with built-in camera, processor, lighting, optics, and I/O capable of detecting and inspecting up to 6,000 parts per minute–all in an industrial IP67 enclosure small enough to fit into the tightest of spaces.
Improve process control with value-line vision technology
Replace multiple photoelectric sensors with fewer industrial sensors
Reduce scrap, downtime and maintenance
Simplify the overall system design
Inspect multiple part features simultaneously
Overcome varying part positions to eliminate the need for costly fixturing
Simple, remote setup and display through your PC or with the optional SensorView® 2 display
Ethernet support for industrial protocols
Image storage to FTP server
Encoder-based part tracking for variable speed lines
Up to four discrete outputs
Up to 32 job changes for maximum flexibility
Inspect up to 6,000 parts per minute
Industry standard Ladder Logic editor for custom outputs to eliminate PLC programming
Model No.: 4G1, 4G7, 4G7C, 4G7X
