Mitutoyo: MICSYS-SA1 2D Image Correlation Encoder (549 Series)
Mitutoyo: MICSYS-SA1 2D Image Correlation Encoder (549 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Availability: Subject to Availability
Order #: 549-701A
.

Description Specifications and Drawings

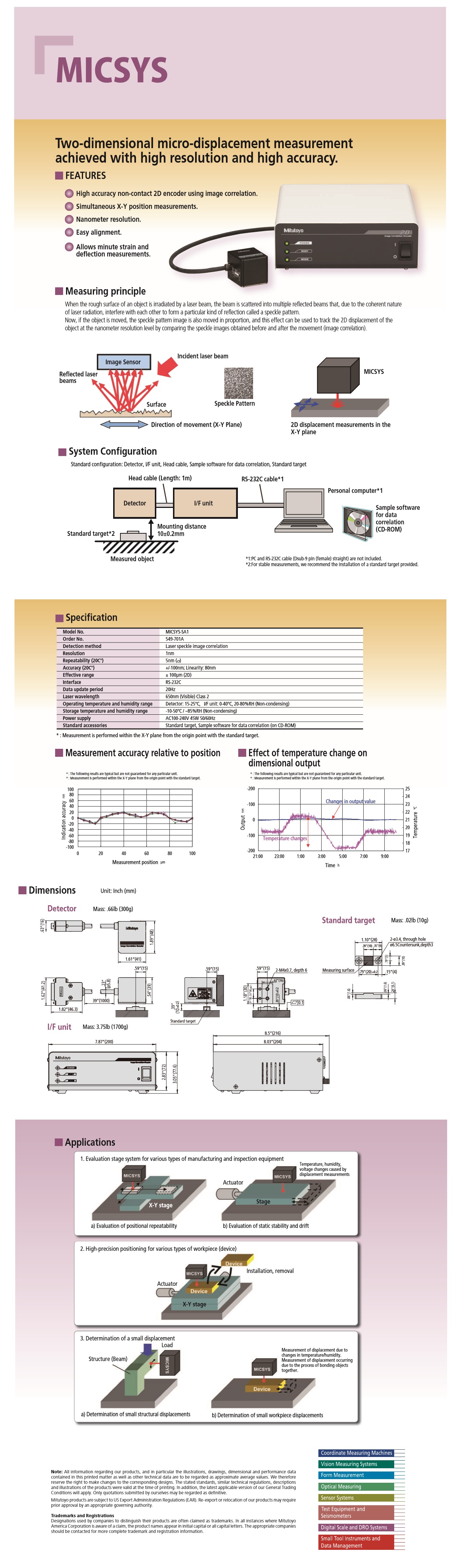

Mitutoyo: MICSYS-SA1 2D Image Correlation Encoder (549 Series) Compact Type

Features

  • High accuracy non-contact 2D encoder using image correlation

  • Simultaneous X-Y position measurements

  • Nanometer resolution

  • Easy alignment

  • Allows minute strain measurement and deflection measurement

Specifications

  • Model: MICSYS-SA1

  • Order No.: 549-701A

  • Detection Method: Laser speckle image correlation

  • Resolution: 1nm

  • Repeatability (20Cº): 5nm (s)

  • Accuracy (20Cº): +/-100nm; Linearity: 80nm

  • Effective Range: ± 100µm (2D)

  • Interface: RS-232C

  • Data Update Period: 20Hz

  • Laser Wavelength: 650nm (Visible) Class 2

  • Operating temperature and humidity range: Detector: 15-25ºC, I/F unit: 0-40ºC, 20-80%RH (Non-condensing)

  • Storage temperature and humidity range: -10-50ºC / ~85%RH (Non-condensing)

  • Power Supply: AC100-240V 45W 50/60Hz
