Mitutoyo: ABSOLUTE Digimatic Scale Units (572 Series)
With Dust/Water Protection IP66 Level
Features:
Newly employed detection method (electromagnetic induction method) enables use in adverse environments with water and cutting oil.
Specially designed output cables are developed to maintain the water resistant structure.
No overspeed error since it employs absolute scale which reads the absolute value.
Once an absolute zero (origin) point is set, the Digimatic Scale Unit shows its absolute distance from the point whenever turned on rather than 0.00”

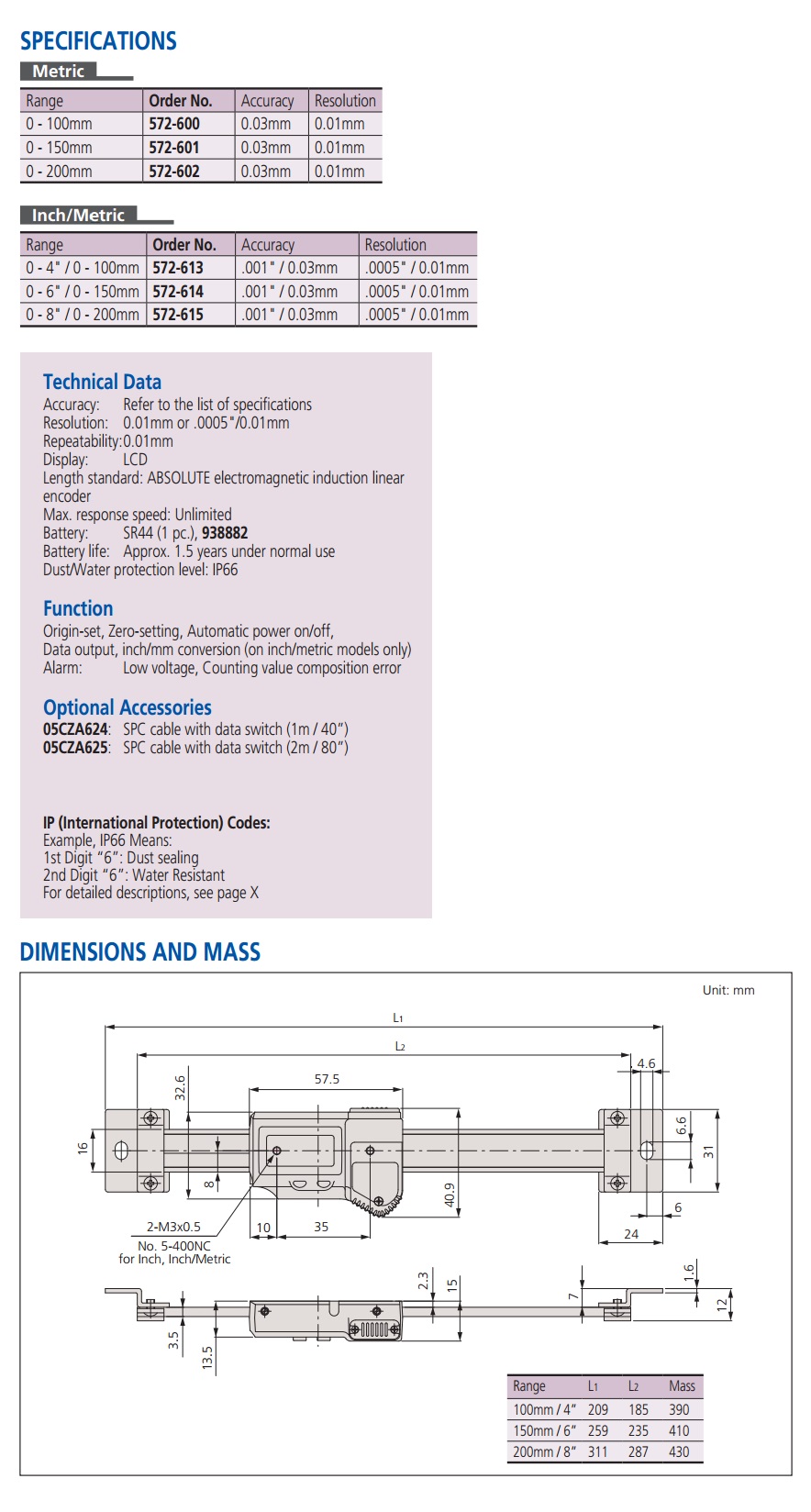

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm
Display: LCD
Length standard: ABSOLUTE electromagnetic induction linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.5 years under normal use
Dust/Water protection level: IP67
Function
Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
05CZA624: SPC cable with data switch (1m / 40”)
05CZA625: SPC cable with data switch (2m / 80”)
IP (International Protection) Codes Example, IP66 mean:
1st Digit “6”:Dust sealing
2nd Digit “6”:Water resistant
Model No.: 572-600, 572-601, 572-602, 572-613 , 572-614, 572-615
