MotiCont: DC Servo Motor Driver (710-01 Series)

The 700 series is a high performance, cost effective Servo Motor Driver to implement intelligent Motion Control. The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density.

Features:

  • Runs DC Servos With Step And Direction Control Inputs

  • +18 VDC to +80 VDC Power Supply

  • PID Closed Loop Operation

  • Quadrature Encoder Feedback

  • Quadrature Encoder Feedback

  • Anti-Dithering Circuit Keeps Motor Silent

  • +5VDC, 50 ma Encoder Supply

  • Pulse By Pulse Motor Current Limiting

  • Small Size: 2.5" X 2.5" X 0.82" (63 mm X 63 mm X 21 mm)

  • No Tachometer Feedback Needed

  • 20 Amp Motor Output

  • 0 to 300 KHz Step Rate

  • Latched Fault Protection

  • 0 C to 70 C Operating Temperature

  • LED Fault Indicator

  • Light: 3.6 Oz (100 gm)

  • Anodized Aluminum Package

  • Modular 2-Piece Main Connector

  • 0 to 20 Amp Current Limit Adjust Range

  • 25 KHz PWM Frequency


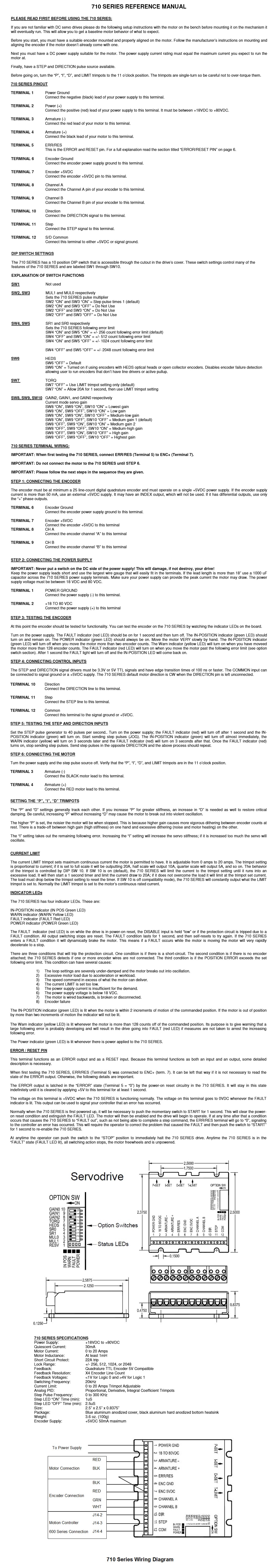

Electrical Specifications:

  • Supply Voltage: +18 VDC to +80 VDC

  • Phase Current: 0 to 20 Amps

  • Step Frequency: 0 to 300 kHz

  • Minimum Load Inductance: 1 mH


Mechanical Specifications:

  • Weight: 3.6 oz. (100 gm)

  • Dimensions: 2.5”W, 2.5”D, .85”H (63.5 mm, 63.5 mm, 21.5 mm)

  • Mounting Pattern: Four 6-32 screws, 1.75” by 2.375” (44.5 mm, 60 mm)
