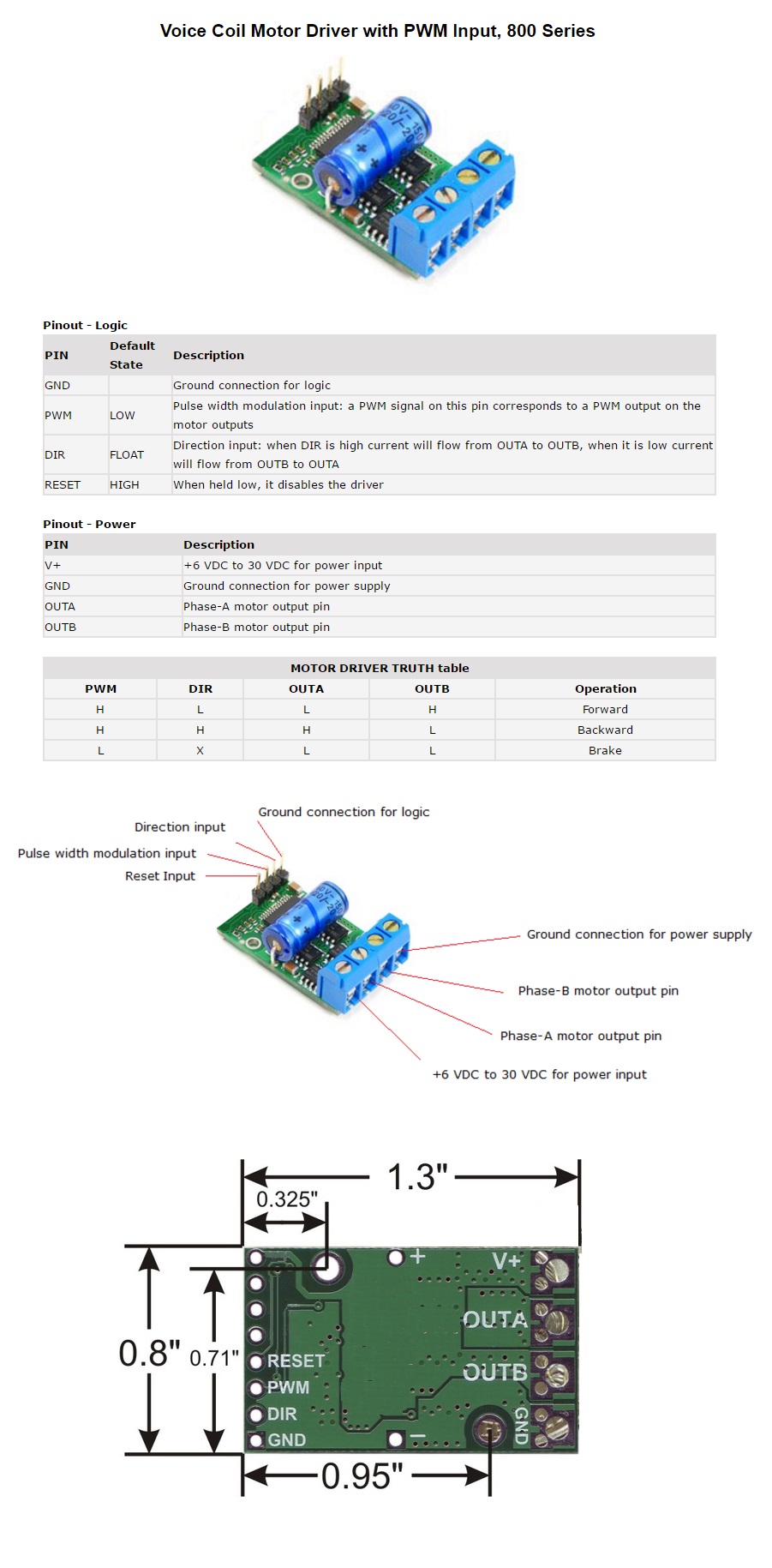

Description Specifications and Drawings


MotiCont: Voice Coil Motor Driver with PWM Input (800 Series)

The 800 series is a high performance, cost effective DC Motor Driver that implements intelligent Motion Control. The driver incorporates surface mount technology to achieve exceptional power density.

This driver does not accept any type of feedback, and may be used in open loop applications. This module may also be used as a driver with a controller that accepts feedback and generates "PWM and direction outputs".


Features:

  • Run DC and Voice Coil Motors with PWM and Direction Control Inputs

  • 4 Amp Motor Output

  • +6 VDC to +30 VDC Power Supply

  • 0 ºC to 70 ºC Operating Temperature

  • Light: 0.36 Oz (10 gm)

  • PWM Frequency up to 40 KHz


Electrical Specifications:

  • Supply Voltage: +6 VDC to +30 VDC

  • Phase Current: 0 to 4 Amps

  • PWM Frequency: 0 to 40 kHz


Mechanical Specifications:

  • Weight: 0.36 oz. (10 gm)

  • Dimensions: 0.8” (20.3 mm) W, 1.3” L, (33.0 mm)

  • Mounting Pattern: Two Places, Diameter 0.078” (2.0 mm)
