Siemens: SINUMERIK CNC Controls
SINUMERIK CNC controllers provide the right solution for every machine concept – from basic CNC standard machines to standardized machine concepts through to modular premium machine concepts.
SINUMERIK 808: Outstanding performance, simply smart
Compact and robust
Thanks to its panel-based CNC design requiring only few interfaces and an operator panel with degree of protection IP65, the SINUMERIK 808D / 808D ADVANCED is perfectly prepared for the use in harsh environments. With its small dimensions, it can be used on compact machines. At the same time, the SINUMERIK 808D / 808D ADVANCED allows convenient operation with short-stroke keys and the well-known SINUMERIK softkeys.
Optimized for basic turning and milling applications
With its technology-specific features, the SINUMERIK 808D / 808D ADVANCED is perfectly preconfigured for turning and milling applications. The scope of applications ranges from basic standardized milling machines and basic machining centers to cycle-controlled turning machines through to basic full-CNC lathes.
Ideal for beginners
With the innovative, integrated startGUIDE, the SINUMERIK 808D / 808D ADVANCED is the ideal partner for entry-level CNC users. In addition to CNC operation and programming, commissioning is also explained graphically and interactively. The uniform SINUMERIK operating and programming philosophy makes the SINUMERIK 808D / 808D ADVANCED the ideal entry-level controller for the world of SINUMERIK applications.

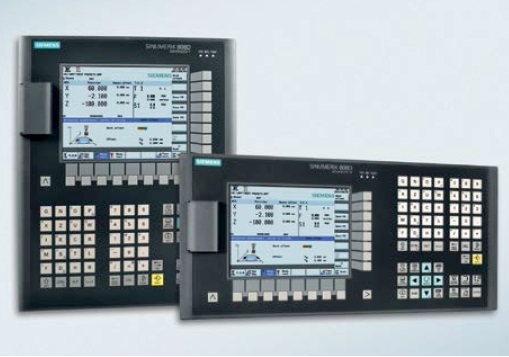

SINUMERIK 808D Advanced
Description
SINUMERIK 808D ADVANCED is perfectly preconfigured to meet the requirements of basic standard machines. SINUMERIK 808D ADVANCED together with SINAMICS V70 drive and SIMOTICS S-1FL6 motor guarantees a high system performance. The high-speed bus communication between CNC and drive ensures a close loop for the position control, which leads to a high accuracy and optimum cutting performance. The international first class CNC technology opens up unparalleled potential for basic turning and milling machines.
Typical fields of application
With the support of up to 5 axis/spindle, the SINUMERIK 808D ADVANCED T system is sufficient for basic turning machines as well as for turning centers without Y-axis.
Thanks to the Advanced Surface function and the high dynamic SINAMICS V70 drive system, the SINUMERIK 808D ADVANCED M system also covers the machining of mold & die parts. SINUMERIK 808D ADVANCED M offers a high price-performance ratio for basic milling machines.
Benefits
Auto Servo Tuning (AST) With AST function, users can easily optimize machines with SINUMERIK 808D ADVANCED that have higher dynamic and accuracy requirements, e.g. in mold & die applications.
Safe Torque Off (STO) function The STO function prevents the unintended movement of machines, e.g. suitable for the safety door application on machines.
High resolution position feedback SIMOTICS S-1FL6 motors support 2500 ppr incremental encoder as well as 20-bit absolute encoder which precisely feedback the current position of the motor.This ensures high precision and optimum surface quality of the finished workpiece.
