Siemens: SINUMERIK CNC Controls
SINUMERIK CNC controllers provide the right solution for every machine concept – from basic CNC standard machines to standardized machine concepts through to modular premium machine concepts.

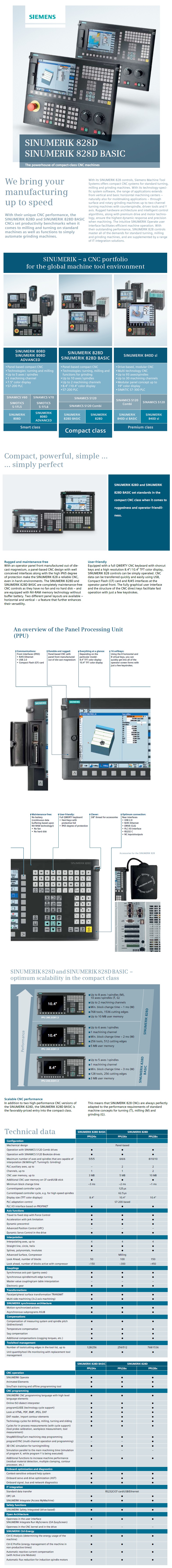

SINUMERIK 828D / SINUMERIK 828D BASIC
The most powerful controller in the compact class
Robust and maintenance-free
An operator panel front made of magnesium die cast, a panel-based CNC design requiring less interfaces together with a high degree of protection make SINUMERIK 828 controllers a reliable partner also in harsh environments. By using a fanless configuration without hard disk and the NV-RAM storage technology without buffer battery, SINUMERIK 828D and SINUMERIK 828D BASIC are completely maintenance-free CNC controllers.
More than standardized turning and milling
With their technology-specific system software, SINUMERIK 828D and SINUMERIK 828D BASIC ideal fit perfectly in standardized turning and milling machines. Not only that, the CNC systems provide solutions for easy automation of grinding machines. Applications range from vertical and simple horizontal machining centers – naturally also suitable for mold building applications – to surface and cylindrical grinding machines and two-channel turning centers with counter spindle, driven tools and Y axis.
A fully-fledged QWERTY CNC keyboard with short-stroke keys together with a high-resolution 8.4“/10.4“ TFT color display allow to conveniently operate SINUMERIK 828D and SINUMERIK 828D BASIC. USB, CF card and RJ45 interfaces on the operator panel front allow to quickly and conveniently transfer CNC data.
The powerhouse in the compact class

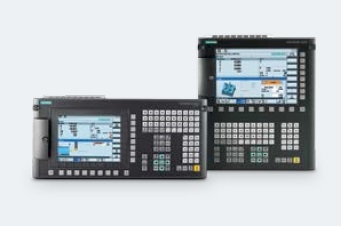

SINUMERIK 828D is a panel-based CNC solution for standardized milling, turning and grinding machines typical for the job shop. It combines CNC, PLC, operating and axis control functions into one compact unit, which is designed to fit any operator panel housing in both its horizontal and vertical version.
With its powerful CNC functions the SINUMERIK 828D sets a standard in the compact class CNCs. Thanks to an extensive CNC programming package the SINUMERIK 828D is optimally prepared for all global CNC end-user markets.
Compact-Maximum power within smallest dimensions:
Strong -Most powerful CNC functions:
80bit NANOFP-Accuracy
Technology package SINUMERIK MDynamics with Advanced Surface
Well structured tool management
Powerful kinematic transformations
ShopMill / ShopTurn - shortest programming time when producing individual parts and small series
programGUIDE – shortest machining time and maximum degree of flexibility when producing large batch series
ISO-dialekt – for optimum CNC program compatibility
Animated Elements – unique graphical visualization support for parameter entry
Integrated Online-help – fast topic related help
Easy Message – send machine status per text message
