Crouzet: Manually Operated Switches (83544/83546 Series) Toggles
Crouzet: Manually Operated Switches (83544/83546 Series) Toggles

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 83544-83546


Model No.:

.

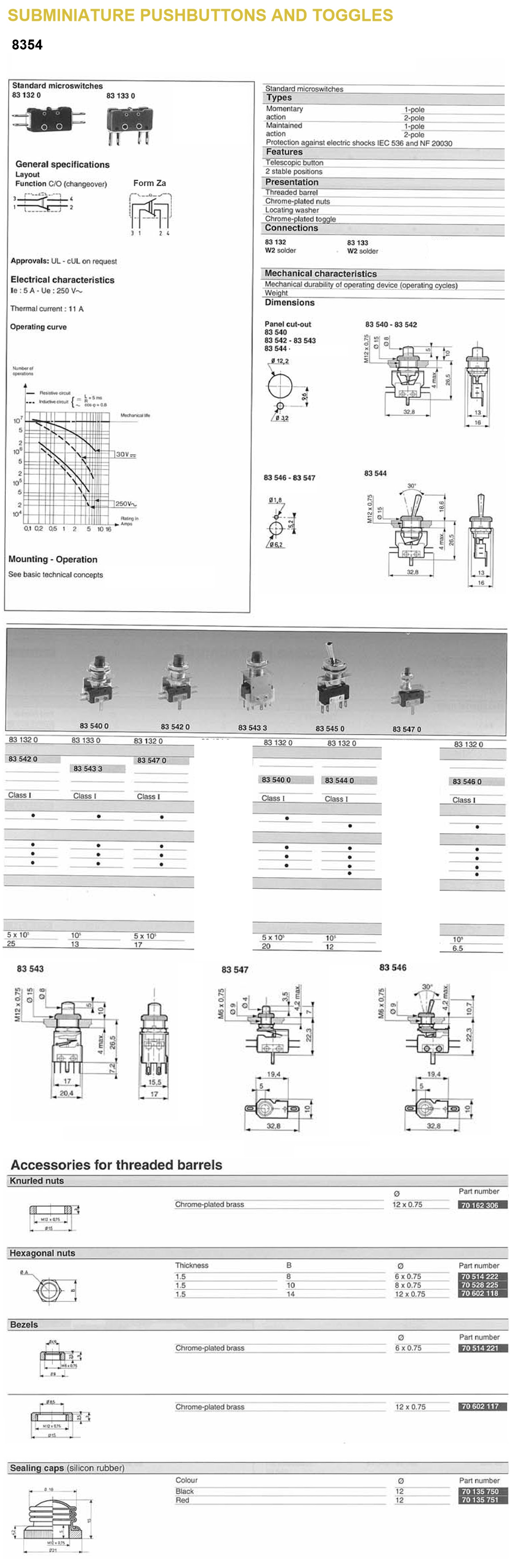

Description Specifications and Drawings


Crouzet: Manually Operated Switches (83544/83546 Series) Toggles

Specifications

  • Approx body size (mm): min 19x18x10

  • Type: Subminiature

  • Action: Maintained

  • Number of poles: 1 → 4

  • Rating (max): 6A / 250Vac

  • Degree of protection: IP40

  • Operating temperature: -20°C / + 125°C

  • Mechanical life (cycles): 0.1 M

  • Connections: Fast-on Solder
