SICK: Absolute Multiturn Encoders (A3M60 Series)
SICK: Absolute Multiturn Encoders (A3M60 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: A3M60
.

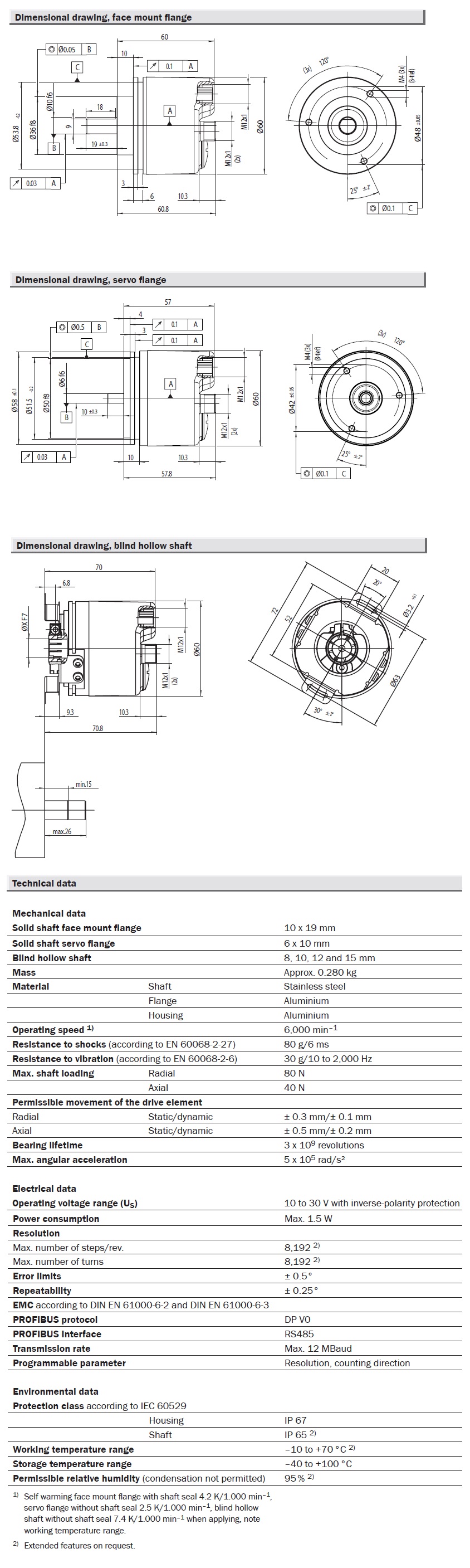

Description Specifications and Drawings


A3M60

(Absolute Multi-turn Encoders, PROFIBUS)

The A3M60 is a very robust Absolute Multi-turn Encoder in the 60 mm design. The pure magnetic technology for both single and multi-turn positioning offers highest reliability even under harshest environmental conditions. The cutting edge single-turn sensor combines the robustness of a magnetic sensor with high resolutions only known from optical systems. With the innovative gearless multi-turn technology, the number of moving components is considerably reduced; this ensures a long lifetime and increased operational reliability. These highly integrated single and multi-turn technologies combined with embedded PROFIBUS connectivity makes the A3M60 a space and cost efficient solution especially suitable for applications with limited installation space. In addition, the powerful microcontroller technology allows fast position calculation at data rates up to 12 MBit and clock synchronization (PROFIBUS-DP V2) in the range of μs.

Features:

  • CW/CCW and preset functionality

  • Total resolution up to 31 bits

  • Scalable resolution

  • Blind hollow shaft 8, 10, 12,15 mm

  • Extremely robust, non-contact magnetic single- and multi-turn scanning system

  • Solid and blind hollow shaft versions

  • Integrated PROFIBUS interface

  • Protection rate up to IP67

  • Very compact design (<65 mm)

The versatility of the A3M60 permits a wide range of applications, including:

  • Palletizer

  • Rack feeder

  • Cranes, stacker cranes

  • Wood processing machines

  • Packaging machines
