Aerotech: Linear Motor Drive Precision Stage (ABL2000 Series)
Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.
Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

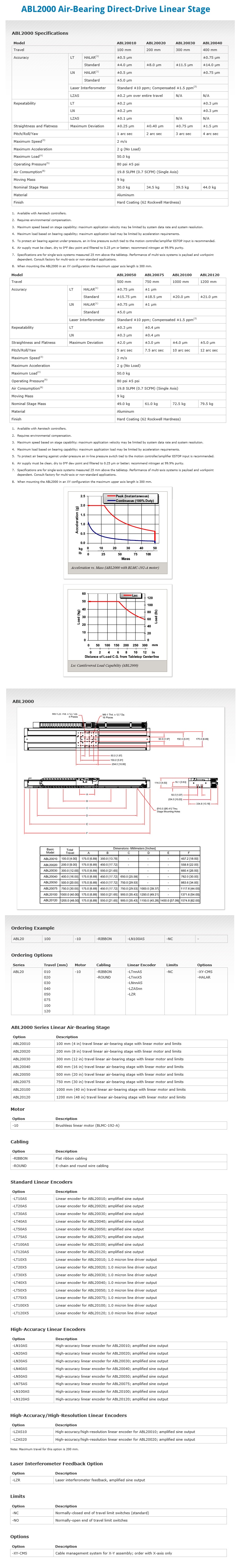

ABL2000 Air-Bearing Direct-Drive Linear Stage
Fully preloaded air-bearing
450 mm wafer compatible
Travel to 1.2 meter
Linear encoder or laser interferometer feedback
Complete noncontact design
Ultra-smooth design for outstanding velocity stability
The ABL2000 combines excellent pitch/yaw characteristics with the unsurpassed velocity control that is necessary for printing, imaging, semiconductor and photonic applications.
By utilizing a magnetic preload, the ABL2000 features a smaller cross-section than typical air-bearing stages without sacrificing load capability. The large air-bearing surfaces provide excellent stiffness, allowing for heavy loading. Proprietary manufacturing techniques result in a stage with unsurpassed pitch, roll and yaw characteristics. Manufactured in Aerotech’s state-of-the-art production facility, the ABL2000 is machined with exacting tolerances that are unachievable by conventional methods.
The driving force behind this stage is Aerotech’s BLMC brushless linear servomotor. Aerotech’s long history and experience as a motor manufacturer is reflected in this latest design. The BLMC utilizes an ironless forcer, which means there is zero cogging and no attractive forces – resulting in unsurpassed smoothness of motion. Since the stage is friction-free and the motor has zero cogging, extremely fine resolutions are achievable.
Our totally noncontact air bearing, noncontact linear motor drive and noncontact feedback device ensure years of maintenance-free operation at the high performance levels that are expected of Aerotech equipment. Because there is no mechanical contact between moving elements, the ABL2000 experiences no wear or reduction in performance over time. Service life is virtually unlimited, and since there is no lubrication – only clean, dry gas – air bearings are ideal for clean room and medical applications.
Years of research have resulted in what is universally considered to be the best cable management system (CMS) in the industry. We carefully optimize the cable bend radius and utilize only the highest quality cable to ensure years of trouble-free operation. In the unlikely event of failure, Aerotech’s modular design makes cable replacement quick and easy with minimal downtime. To facilitate integration into the final system, we include all customer-required cables, air hoses, etc. in our CMS bundle. Both ends are fully connectorized for simple integration into the customer’s machine. High flex ribbon cable versions are also available.
Model No.: ABL20010, ABL20020, ABL20030, ABL20040, ABL20050, ABL20075, ABL20100, ABL20120
