Mitutoyo: ABSOLUTE Digimatic Scale Units (572 Series) 0-12in/0-300mm
Mitutoyo’s new Absolute Digimatic Scale Unit offers special functions which allow it to always remember its measuring position even after the gage has been switched off.
Features
The ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements. Once set, the ABS Digimatic Scale Unit is ready to show its true position whenever turned on rather than 0.00” as with standard models.
The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements. This key will also allow return to the absolute coordinate with a display of the true position from the origin point.
No rack, no pinion, no glass scale. Digimatic Scale Unit is safely embedded in the hardened stainless steel blade.
Horizontal or vertical face according to the scale mounting direction.
Special type that is provided with diameter displaying function is available for lathes.
All units come with two mounting brackets, each located at either end of the scale.
With SPC data output.
Single Function Type (Horizontal) Model No. : 572-213-10
Single Function Type (Vertical) Model No. : 572-313-10

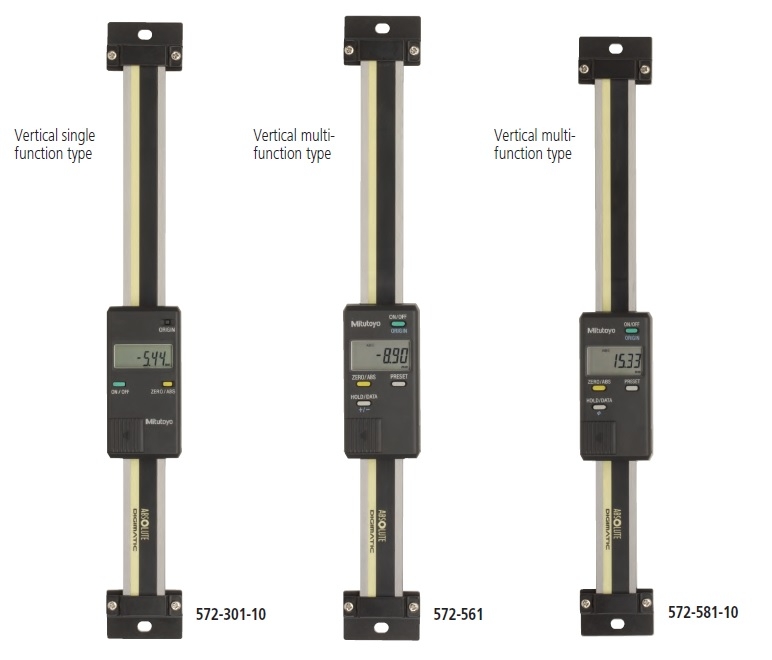

Multi-Function Type (Horizontal) Model No. : 572-473
Multi-Function Type (Vertical) Model No. : 572-573
Multi-Function Double Reading Type (Horizontal) Model No. : 572-493-10
Multi-Function Double Reading Type (Vertical) Model No. : 572-593-10
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (on inch/metric models only), Counting direction switching (not available for single function models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
959143: Data hold unit for single function type
959149: SPC cable with data switch for single function type (40” / 1m)
959150: SPC cable with data switch for single function type (80” / 2m)
905338: SPC cable (40” / 1m standard)
905409: SPC cable (80” / 2m standard)
905689: SPC cable (40” / 1m L-shape, back)
905690: SPC cable (80” / 2m L-shape, back)
905691: SPC cable (40” / 1m L-shape, right)
905692: SPC cable (80” / 2m L-shape, right)
905693: SPC cable (40” / 1m L-shape, left)
905694: SPC cable (80” / 2m L-shape, left)
Model No.: 572-213-10, 572-313-10, 572-473*, 572-493-10**, 572-573*, 572-593-10**
*Multi-function type
**Multi-function type with diameter displaying function for lathe (Counting direction switching function is not provided)
