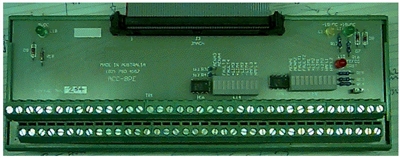

Delta Tau: Terminal Board (ACC-8PE)
Delta Tau: Terminal Board (ACC-8PE)



Price: (Members Only)

Quantity in Stock:9

Order #: ACC-8PE
Qty:

Description


* In overseas warehouse, about 1 week lead time for this Model.


Delta
Tau: Terminal Board (ACC-8PE)

Enhanced terminal board for JMACH on PMAC

This product is specifically designed to replace the standard ACC-8 for Delta Tau's PMAC. It provides the following enhancements over the standard product:

  • LED indication of following error status (or reset status)

  • Optocoupling of Amplifier enable (AENA) signals with both collector and emitter brought out to allow both sinking and sourcing output configurations.

  • Eliminates potential voltage drop problems in ribbon cable of 5 volt lines.

  • More robust; 60 way header than standard item.

  • Only 32 mm longer.

  • Cheaper than the genuine article.

  • LED indication of power supplies. (only light when voltage is in spec)

More power supply terminals for encoders and flag returns:

  • 4 x 5VDC

  • 4 x common

  • 7 x AGND

  • 2 x +15VDC

  • 2 x –15VDC

LED indication of flag status:

  • Amplifier enable output AENA

  • Amplifier fault input FAULT

  • End limit switch inputs +LIM and –LIM

  • Home flag input HMFL
