CUI: Mechanical Panel Incremental Encoders (ACZ09 Series)
CUI: Mechanical Panel Incremental Encoders (ACZ09 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: ACZ09
.

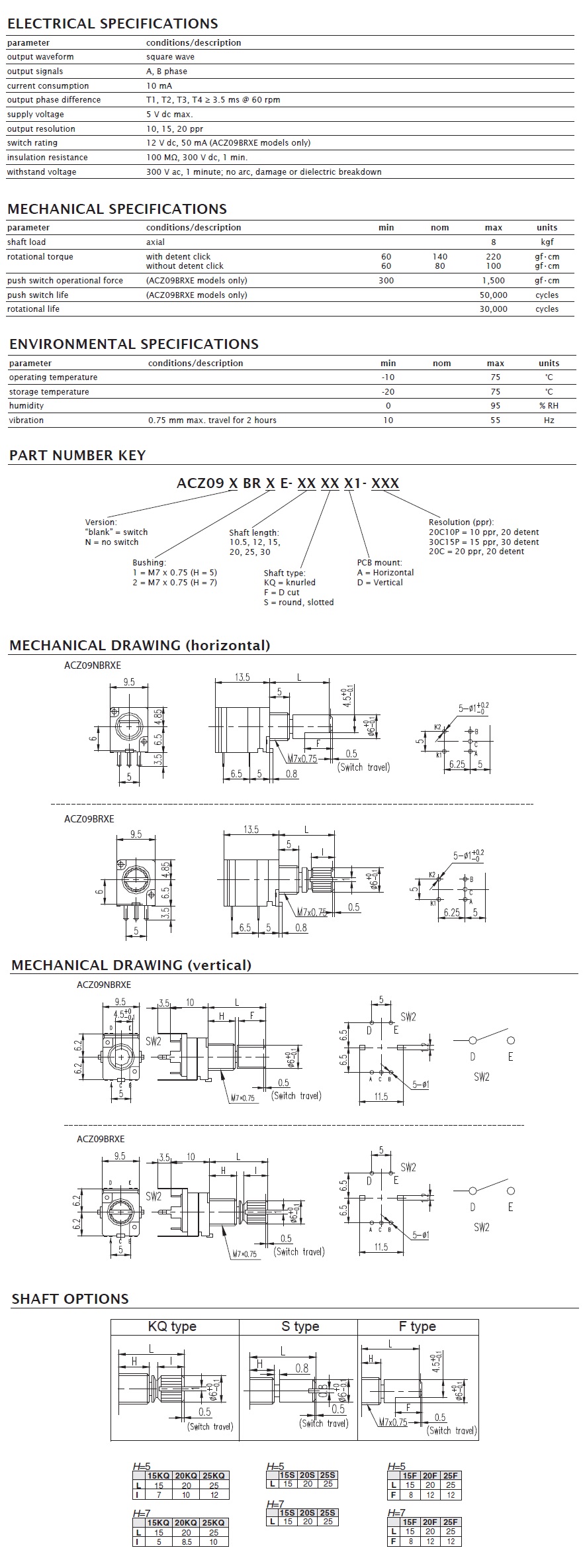

Description Specifications and Drawings


CUI: ACZ09 Series
9 mm 10 ~ 20 PPR, Through Hole, Mechanical Panel Mount Encoder

The ACZ09 encoder series is designed to provide an accurate and inexpensive method for user input across a wide range of applications. The family of mechanical encoders includes vertical and right angle models in a 9 mm package size, offering an economical solution for control applications where space is a critical concern. Also included in the offering are a range of resolutions, detent options, and pin configurations to allow for convenient integration with many designs.

Specifications:

  • Input Voltage (Vdc): 0 ~ 5

  • Shaft Length (mm): 10.5, 12, 15, 20, 25, 30

  • Operating Temp. (°C): -10 ~ 65
