CUI: Mechanical Panel Incremental Encoders (ACZ12 Series)
CUI: Mechanical Panel Incremental Encoders (ACZ12 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: ACZ12
.

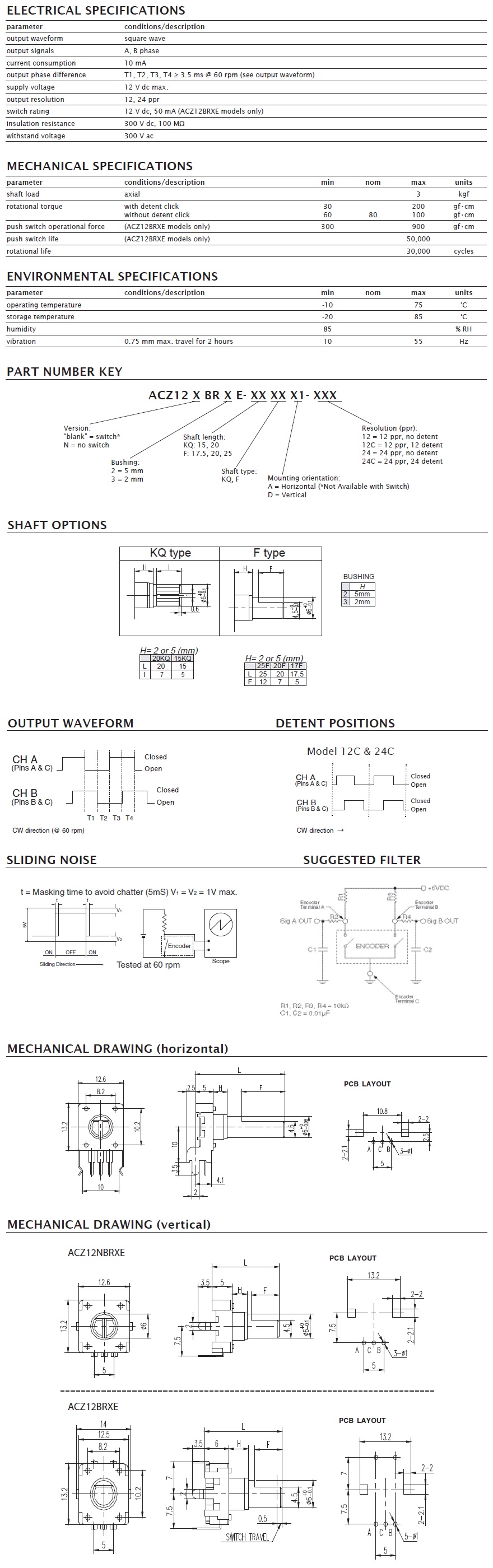

Description Specifications and Drawings


CUI: ACZ12 Series

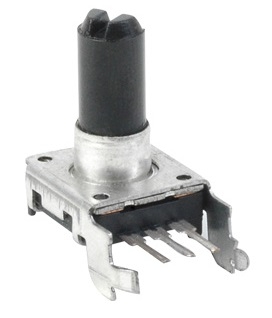

12 mm, 12 or 24 PPR, Through Hole, Mechanical Panel Mount Encoder

The ACZ12 encoder series is designed to provide an accurate and inexpensive method for user input across a wide range of applications. The family of mechanical encoders includes vertical and right angle models in a 12 mm package size, offering an economical solution for control applications where space is a critical concern. Also included in the offering are a range of resolutions, detent options, and pin configurations to allow for convenient integration with many designs.

Specifications:

  • Input Voltage (Vdc): 0 ~ 5

  • Shaft Length (mm): 15, 17.5, 20, 25

  • Operating Temp. (°C): -10 ~ 75
