Avago: AEAT-6010/6012 Magnetic Encoder
10 or 12 bit Angular Detection Device
(Series Single-Turn Magnetic Housed Encoder)
Description
The AEAT-60xx series is a high performance, low cost, optical absolute magnetic encoder module, designed to detect absolute angular position for precise motor feedback. The magnetic encoder provides design engineers the option of a 10-bit or 12-bit resolution package to cater to different application needs. In addition, the magnetic encoder comes complete with housing that enables easier assembly and integration to customers' applications. Thus eliminating the tedious and cumbersome process of alligning the encoder and codewheel against the rotation shaft of the motor system. With a wide operating temperature rating of between -40ºC to 125ºC, the AEAT-60xx series assures design engineers of highest level of performance under extreme operating temperature. Coupled with its robust characteristics, the encoder is resistant to oil and dirt influence, making it ideal for industrial automation applications. With a 3-wire serial interface, the AEAT-60xx series enables the provision of absolute position data in binary format. The encoder is compatible with a wide range of industrial automation applications with a single 5V power supply input, which are accessed through four 0.025 inch square pins located on 0.1 inch centers. In addition, the AEAT-60xx is packaged in a small form factor, allowing design engineers to easily design-in or integrate with space-constraint applications.
Features:
10/12 bits resolution
Contactless sensing technologies
Wide temperature range from -40° to 125°C
Absolute angular position detection
Synchronous Serial Interface (SSI) output for absolute position data (binary format)
Single 5V power supply
Easy assembly, no signal adjustment required
Direct connectivity through PCB
RoHS compliant
Small form factor (23mm diameter x 19mm height)
6mm shaft dimension
Applications:
Robotics, Automated Assembly lines
XY Table, Optical Scanner
Machine tools, Cutting, Feed to Length, Indexing Conveyor
Measurement Instruments, Metering, Dispensing, Medical

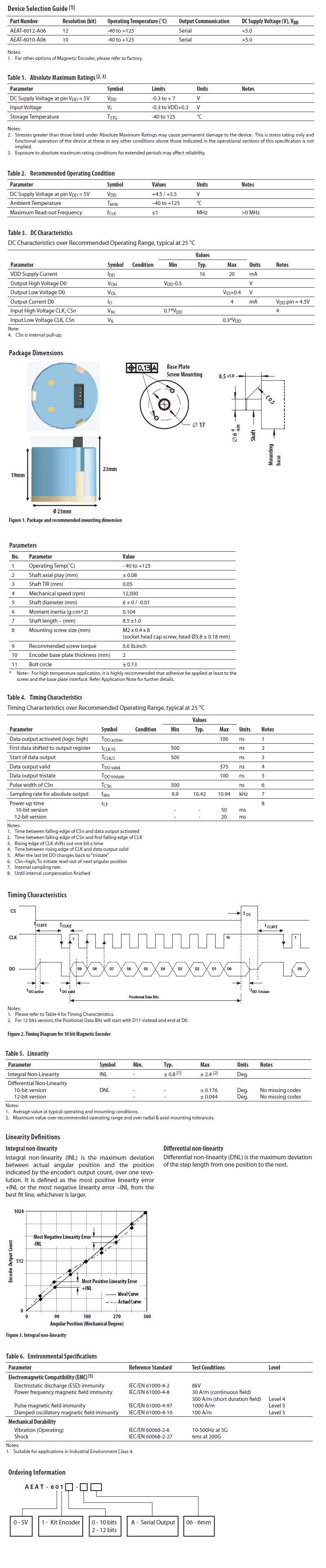

Specification/ Value:
Lifecycle/ Active
Distrib. Inventory/ Yes
Samples Available/ Yes
RoHS6 Compliant/ Y
Max Qty of Samples/ 1
Motion Type/ Rotary
Output Code/ Binary
Operating Temperature Range/ -40°C to +125°C
Output Type/ Digital
Product Size (mm)/ 23 (dia) x 23 (h)
Shaft Diameter/ 6
Package/ NA
Resolution/ 12 Bits
Housed Encoders
Avago has been making encoder modules previously used in US Digital kit encoders for over 25 years. If you are being forced to change because US Digital no longer uses Avago encoder modules, come get your US Digital replacement kit encoder from the original source: Avago Technologies.
Avago is proud to offer a full range of standard and custom housed encoders and kit encoders to meet your technical specifications. These housed and kit encoders utilize the encoder modules described in the other sections of the Avago Motion Control Encoder web site. A variety of standard housed encoders are available for purchase from inventory, or we can customize a solution for your application.
Many popular encoders such as the US Digital E2 Series and US Digital E5 Series can be replaced with Avago housed kit encoders. The HEDC-55xx/56xx Series can be used as direct replacements for the US Digital E5 Series kit encoders. Avago also has replacements for encoders from Renco such as the RCML15, R22i, and R35i.
Model No.: AEAT-6010-A06, AEAT-6012-A06
