AEAT-7000-1GSD0 Ultra-Precision Absolute Encoder
The AEAT-7000 is a high speed, high resolution absolute encoder module capable of providing up to 13bits of absolute positioning information. Its small, compact and modular form factor also makes it an ideal choice for space-constrained applications.
The encoder IC consists of an array of photo diodes, including a monitor photo diode channel. The photodetector IC is used together with a codewheel or code disc. The photo diodes are accompanied with precision amplifiers plus additional circuitry. The monitor channel is used to drive a constant current source for the highly collimated IR illumination system.

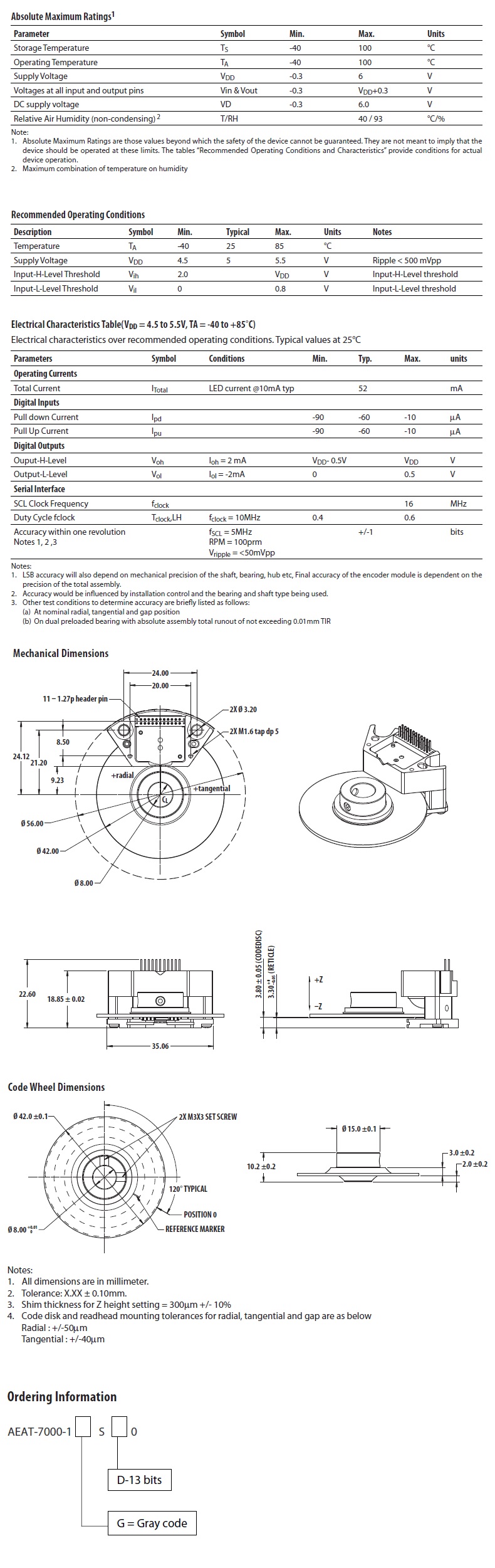

Features
13 bits resolution
Serial Synchronous Interface
Sine/Cosine true differential outputs with 1024 periods
16MHz data rate for high-speed applications
Easy to align
Applications
Semiconductor automation machines
Industrial sewing machines
Robotics
Valve control
Machine tools
Benefits
Feedback device generates unique binary 'word' for each encoder shaft position
Provides positional information instantly upon power up
Ideal for space constrained applications
Avago’s single turn encoders provide unique positional information for each shaft location. This location is independent from all other locations. In an absolute single turn encoders application, there are several tracks with common centers, and single light sources. As the light passes through the slots on the moving tracks, it creates shadows at intervals. Where a shadow is detected, a low state (0) is created. When the light successfully penetrates the slot a high state (1) is created. The position of the shaft is detected by reading the pattern of 1’s and 0’s. For higher resolution single turn encoders, incremental tracks are added. These tracks enable the interpolation of signals. Avago’s single turn encoders provide high accuracy read-out for applications which require precise positional information. In addition, these single turn encoders’ use of the SSI non-proprietary serial communication protocol means that these single turn encoders can match most applications’ output requirements. Avago's absolute single turn encoders come in a 13-bit and 16-bit resolution package to cater to the needs of a range of applications in the factory and industrial automation industry such as robotic arms, valve controls, test and measurement equipment, etc.
