Avago: Incremental Encoders and Code Wheels, 100 to 500 CPR (AEDB-9140 Series)
Avago: Incremental Encoders and Code Wheels, 100 to 500 CPR (AEDB-9140 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AEDB-9140


Model No.:


.

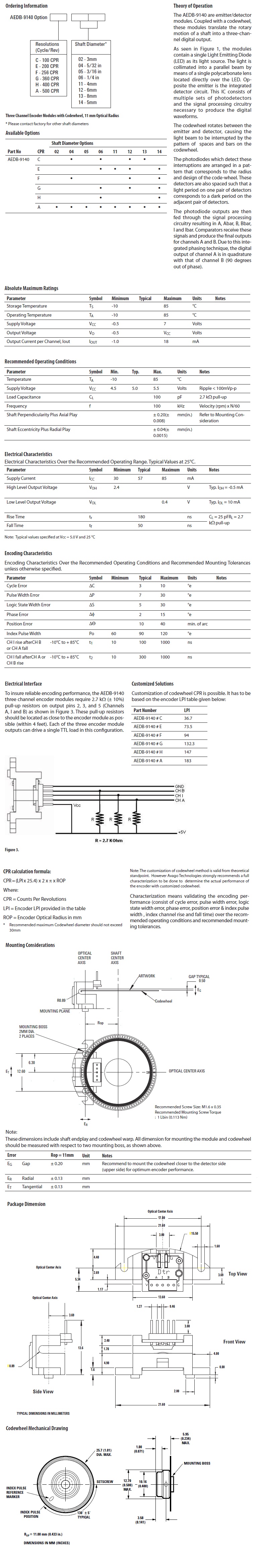

Description Specifications and Drawings


AEDB-9140 Series
(Cost Effective, Miniature Optical Incremental Encoder Module - 100 to 500 CPR)

The AEDB-9140 Series is a miniature encoder series with outer diameter of less than 30mm. The product is designed with semicircular module hence fit elegantly into any round shape housed encoder. Such size and shape is popularly used in the automation industry.

The product is designed for use with a codewheel at 11.00mm (0.433inch) optical radius.Resolutions are available from 100 through 500 CPR.The operating temperature ranges from -10 degree Celcius through 85 degree Celcius with the maximum operating frequency at 100Khz.The design uses transmissive technology and produces a 3-channel output (A, B & Z).

Features

  • Resolution range from 100 through 500 CPR

  • Operating temperatures of -10 degree Celcius to 85 degree Celcius

  • TTL Compatible

  • Two Channel Quadrature Output with Index Pulse

Applications

  • Printers

  • Plotters

  • Tape Drives

  • Industrial and Factory Automation Equipment

Benefits

  • Miniature size, ideal for space constrained applications

  • Complete package of encoder module with codewheel offer highly competitive price range.

  • No Signal Adjustment Required

  • Extremely tolerant to mounting misalignment.

  • Easy to mount

Incremental Encoders and Code Wheels

Incremental Encoders are position feedback devices that provides incremental counts. Thus, incremental encoders provide relative position, where the feedback signal is always referenced to a start or home position. For incremental encoders, each mechanical position is uniquely defined. The current position sensed is only incremental from the last position sensed. Incremental encoders are also non-contacting optical, rotary, quadrature output device.

These incremental encoders are also called optical encoders or optical incremental encoders because they utilizes optical technology. Optical incremental encoders are highly sort after as position feedback devices due to its durability and ability to achieve high resolution. Avago's optical incremental encoders are exceptionally recognized for its reliability and accuracy.

To ensure convenience, efficiency and cost effectiveness of our customers assembly requirements, Avago offers a range of incremental encoders that are readily matched with compatible code wheels. The choice of code wheels in this category, enables Avago’s incremental encoders to perform in the most optimum position and provide the most accurate output.

Model No.: AEDB-9140-A06, AEDB-9140-A12, AEDB-9140-A13, AEDB-9140-A14, AEDB-9140-F12, AEDB-9140-H14
