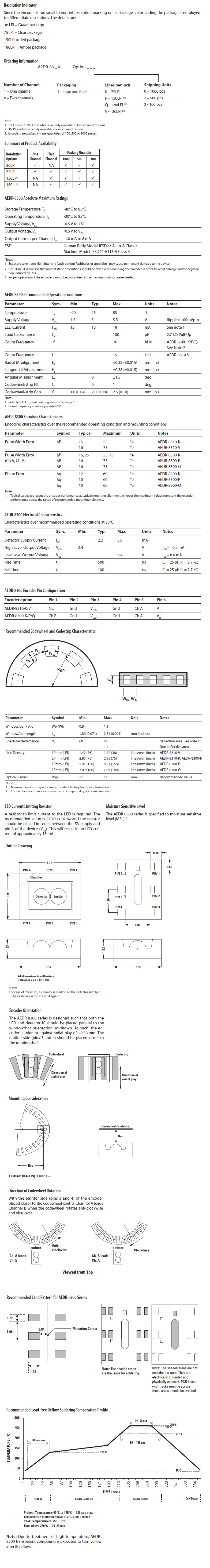

Description Specifications and Drawings


AEDR-8310 Series Encoders

Reflective Surface Mount Optical Encoder

Description

The AEDR-8310 series is the smallest optical encoder employing reflective technology for motion control purposes. The encoder combines an emitter and a detector in a single surface mount leadless package. When used with a codewheel or linear codestrip, the encoder translates rotary or linear motion into digital output.

The AEDR-8310 series outputs TTL compatible signal; and as such, can be interfaced directly with most of hte signal processing circuitries. Hence, the encoder provides great design-in flexibility and easy integration into existing systems.

The AEDR-8310 series provides motion sensing at a competitive cost, making it ideal for high volume applications, Its small size and surface mount package make it ideal for printers, copiers, card readers and many consumer products, particularly where space and weight are design constraint.

Feature

  • Reflective technology Surface mount small outline leadless package

  • Single channel incremental output

  • TTL compatible output

  • Single 5V supply

  • -20 to 85 degree C absolute operating temperature

  • Resolution: 2.95 lines/mm(75 lines/inch)

Model No.: AEDR-8310-1K0, AEDR-8310-1K1, AEDR-8310-1K2, AEDR-8310-1V0, AEDR-8310-1V1, AEDR-8310-1V2
