Avago: 3 Channel Reflective Incremental Encoders (AEDR-850x Series)
Avago: 3 Channel Reflective Incremental Encoders (AEDR-850x Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AEDR-850X


Model No.:


.

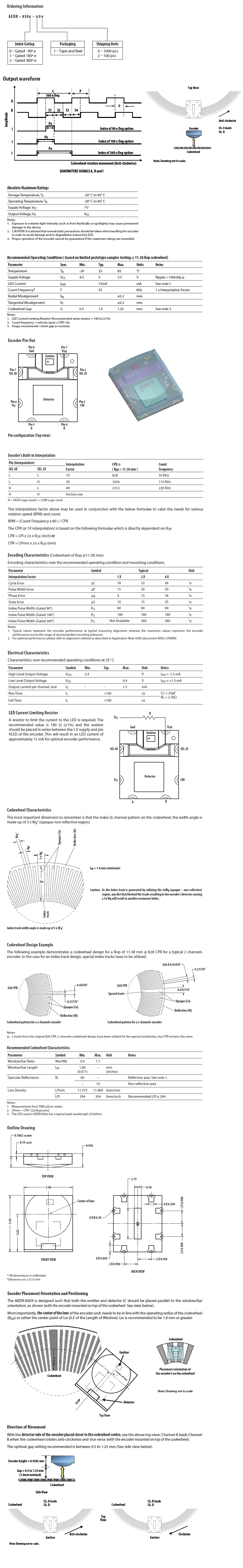

Description Specifications and Drawings


AEDR-850x Series

(3 Channel Reflective Incremental Encoders)

Description

The AEDR-850X encoder is the smallest 3 channels optical encoder with digital outputs in the market employing reflective technology for motion control purposes. The encoder is designed to operate over -20° C to 85° C temperature range and hence suitable for both commercial and even industrial end applications.

The encoder houses an LED light source and a photo-detecting circuitry in a single package. The small size of 3.95 mm (L) x 3.4 mm (W) x 0.9562 mm (H), allows it to be even used in a wide range of miniature commercial application where size and space is a primary concern.

The AEDR-850X encoder offers two-channel quadrature digital outputs and a 3rd channel, index digital outputs. Being TTL compatible, the outputs of the AEDR-850X encoder can be interfaced directly with most of the signal processing circuitries. Hence the encoder provides great design-in flexibility and easy integration into existing systems.

Features

World smallest 3 channels reflective technology encoder.

• Surface mount leadless package 3.95 mm (L) x 3.4 mm (W) x 0.9562 mm (H)

• 3 channels; two channel quadrature digital outputs for direction sensing and a 3rd channel, Index digital output.

• Build in interpolator, factor of 1x, 2x and 4x selectable via external pinouts

• TTL compatible

• Single 5 V supply

• -20° C to 85° C absolute operating temperature

• Encoding resolution: 294 to 304 (lines/inch)

Applications

Ideal for high volume applications:

• Close Loop stepper Motors

• Miniature Motors

• Printers

• Copiers

• Card readers

• Scanners

• Projectors

• Consumer and Industrial Product Applications

Note: Avago Technologies encoders are not recommended for use in safety critical applications, e.g., ABS braking systems, power steering, life support systems and critical care medical equipment. Avago’s products and software are not specifically designed, manufactured or authorized for sale as parts, components or assemblies for the planning, construction, maintenance or direct operation of a nuclear facility or for use in medical devices or applications. Customers are solely responsible, and waive all rights to make claims against Avago or its suppliers, for all losses, damage, expense or liability in connection with such use. Please contact your local sales representative if more clarification is needed.

Model No.: AEDR-8500-100, AEDR-8500-102, AEDR-8501-100, AEDR-8501-102, AEDR-8502-100, AEDR-8502-102
