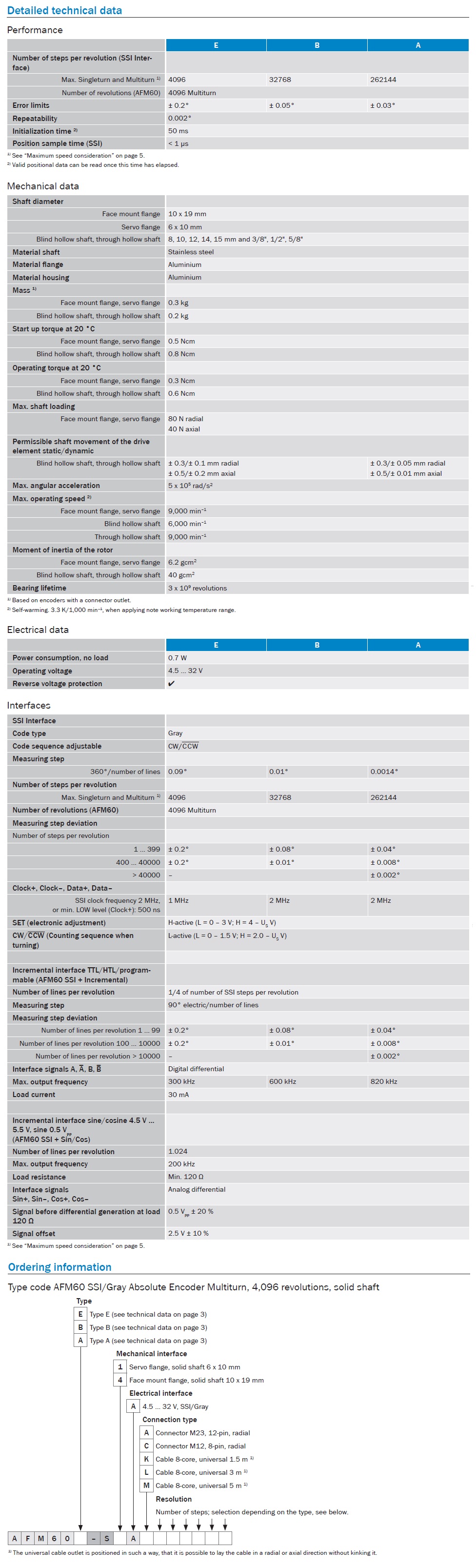

Description Specifications and Drawings


AFM60

(Absolute Multiturn Encoders - Fixed Count)

Description:

With a high resolution of 18 bits (AFS60) or 30 bits (AFM60) and a large selection of programmable parameters, the AFS60 absolute singleturn encoder and the AFM60 absolute multiturn encoder set new standards when it comes to rotary encoders. The high resolution combined with the high IP protection class enables use in a multitude of industrial applications.

Both encoders are equipped with the SSI interface while the AFM60 is also available with the SSI + Incremental and SSI + Sin/Cos combined interfaces. A shaft bearing distance of 30 mm means the AFS60/AFM60 product family has significantly better rotation accuracy than encoders with blocked ball bearings. Yet despite their large bearing distance, the AFS60/AFM60 have a compact design. The AFS60 and AFM60 can be programmed via the same programming tool (PGT-08-S) as the DFS60 product family from SICK.

Features:

  • High resolution absolute encoder multiturn 30 bit

  • Flexible operation due to programmable variants

  • Universal pluggable cable outlet

  • Connector M12 and M23

  • Face mount and servo flange

  • Excellent run out due to big ball bearing distance

  • General mechanic and software concept
