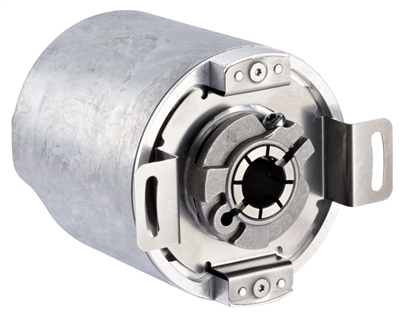

AFS/AFM60 PROFINET
(Absolute Single-turn Encoders)
Description:
Absolute encoders are used when the position data must be retained after loss of power. Single-turn encoders are used when the full range of motion in the application occurs within one full revolution (360°) of the encoder shaft. Multi-turn encoders are recommended for applications involving multiple revolutions of the encoder shaft.
Features:
High resolution 30-bit absolute encoder (18-bit single-turn and 12-bit multi-turn)
Face mount flange, servo flange and blind hollow shaft
Connection type: 3 x M12 axial plug
PROFINET-IO-RT interface
Less than 5 ms data update time
Round axis functionality
Alarms, warnings and diagnostic functions for speed, position, temperature, operating time, etc.
Status display via 5 LEDs
