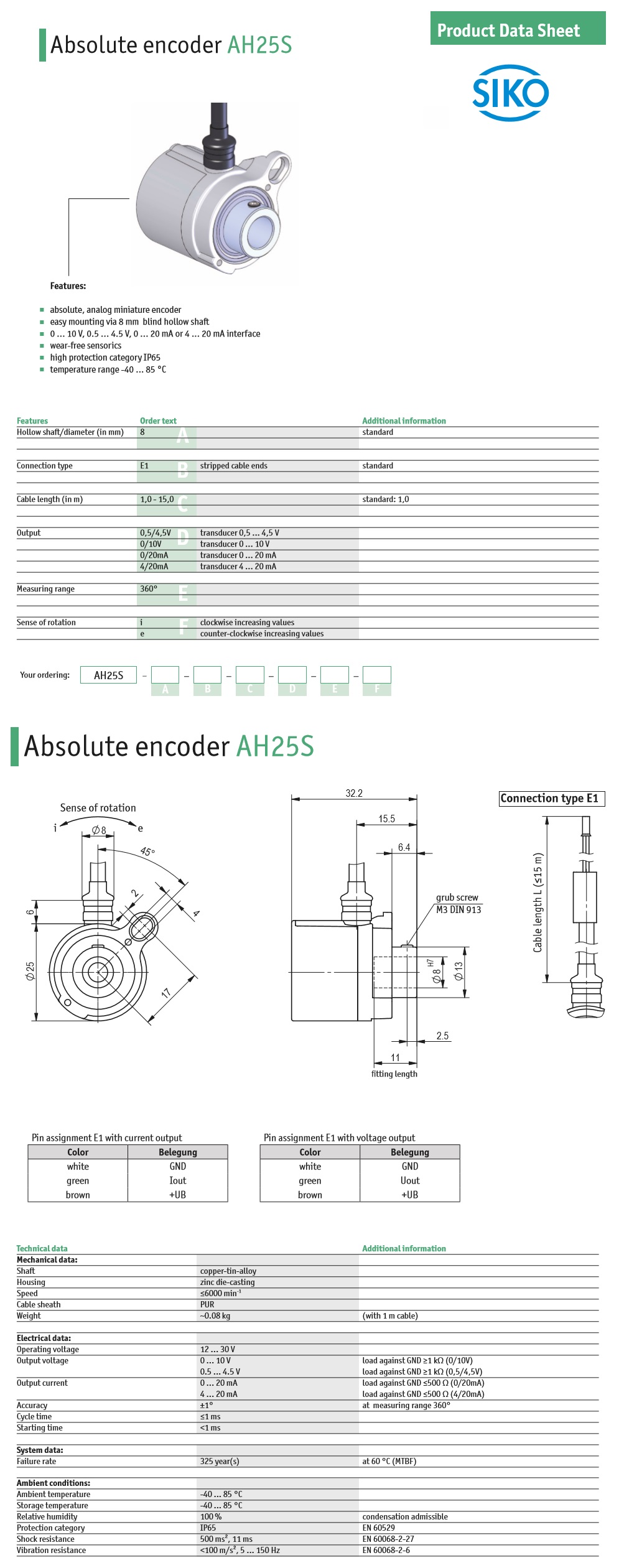

Description Specifications and Drawings


SIKO: Absolute Encoder (AH25S Series)

robust absolute single-turn rotary encoder

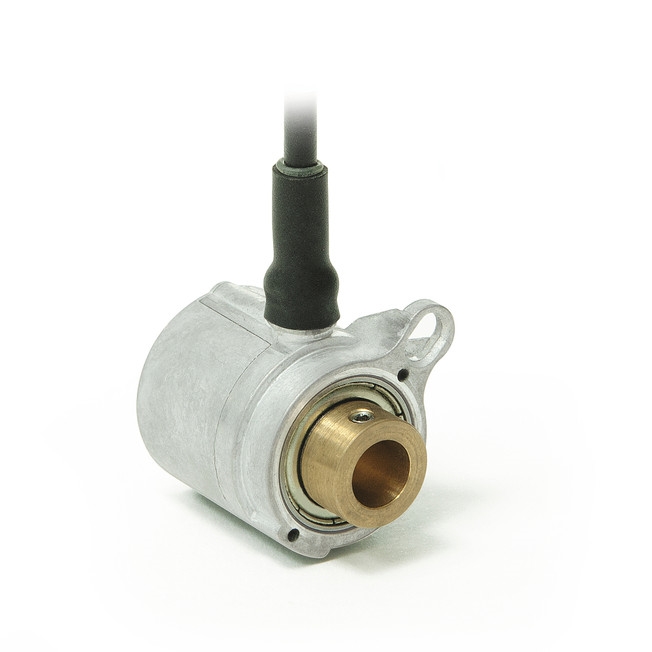

The rotary encoder AH25S is a magnetic miniature single-turn absolute encoder with an analogue output. This rotary encoder with its robust die cast housing was designed especially for use in mobile machines and has an absolute range of 360°. With its extremely compact size (ø25 mm) it is predestined for applications with very limited space.

Profile AH25S:

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection category

  • -40 °C … +85 °C operating temperature

  • Voltage (0.5 … 4.5 V, 0 … 10 V), current (0 … 20 mA, 4 … 20 mA) outputs

  • Easy mounting by hollow shaft ø8mm
