Sanyo Denki: AC Servo Systems Accessories Cable Connector and Battery (AL SERIES)

Highly accurate AC servo systems consisting of compact, high-torque servo motors and servo amplifiers that reduce positioning settling time. With highly responsive command following and vibration controls to minimize machine stand resonance, they contribute to shortened takt time. They are ideal for applications where high precision movement is required, such as semiconductor manufacturing equipment, chip mounters, robots, and machine tools.

Description:

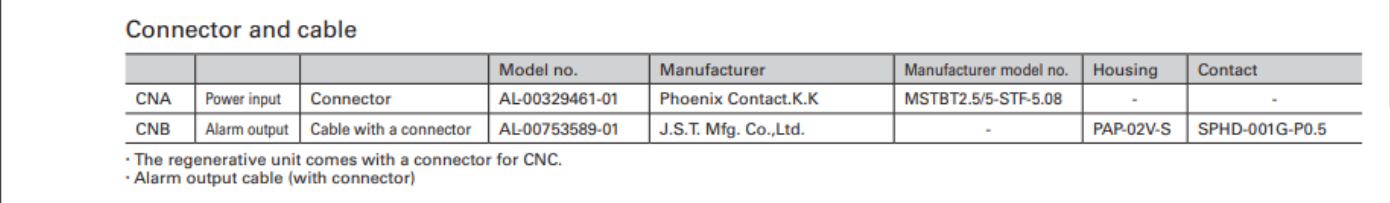

AL-00329458-01 - Connector set
AL-00329461-01 - Connector set, Servo, QS1, RS1
AL-00385594 -
Connector set, Servo, RS1, RS2, QS1
AL-00385596 -
Connector set

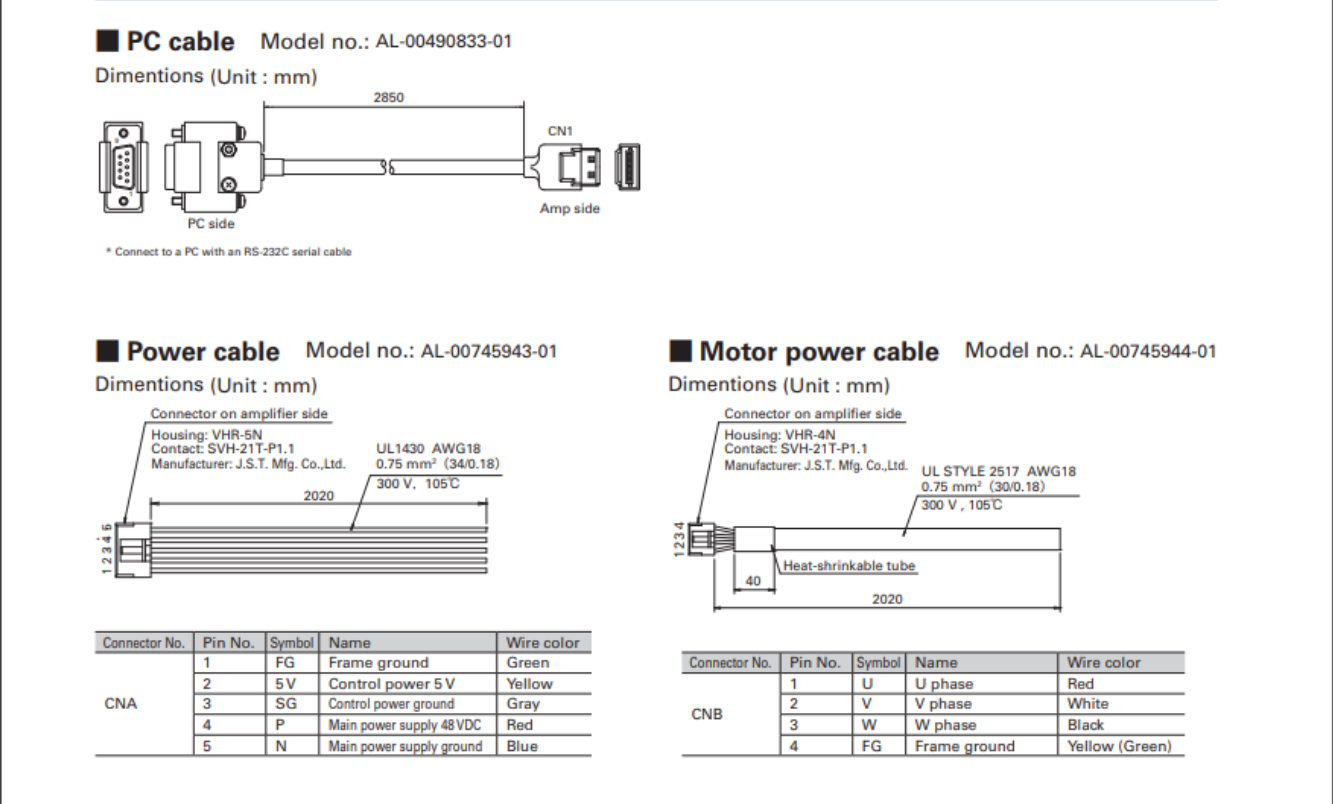

AL-00490833-01 - Cable, Servo, RS1
AL-00494635-01 -
Cable, Servo, RS1
AL-00591171-01 -
Connector
AL-00632607 - Connector, Servo, RS1, RS2
AL-00686902-01
- Connector, Servo, RS2

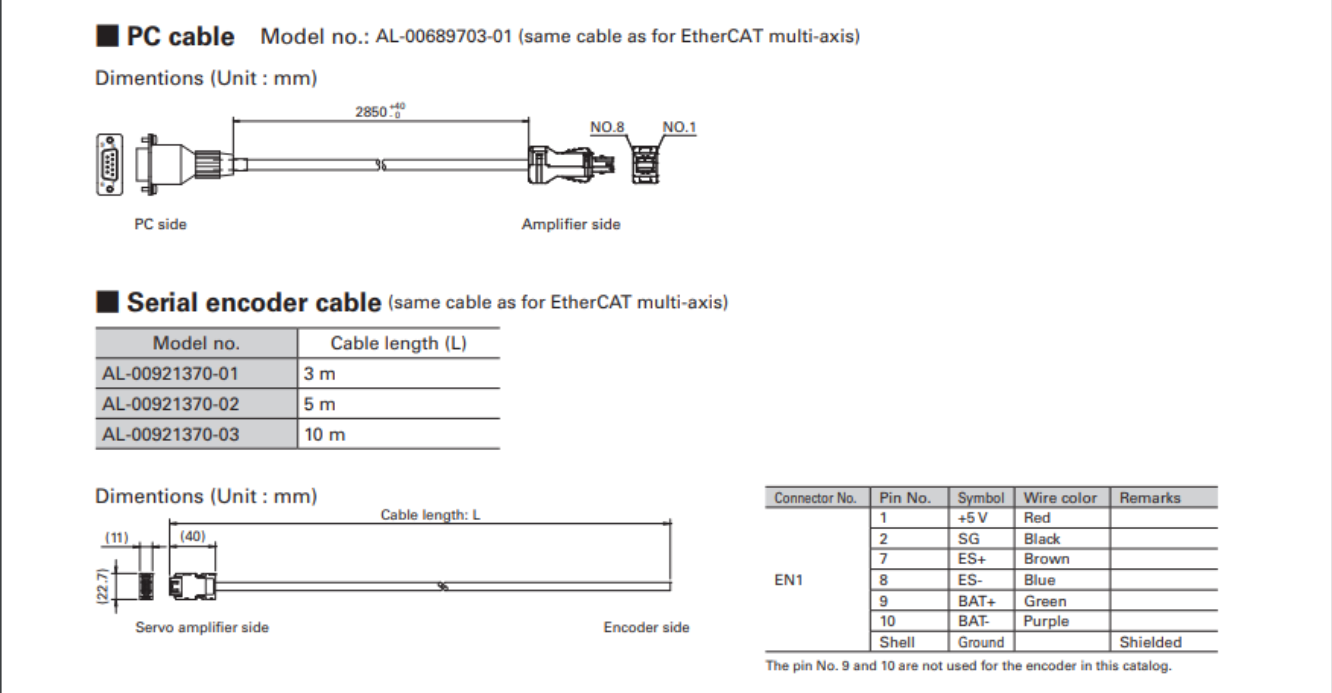

AL-00689703-01 - Cable, Servo, RS2, 2.85m, PC <=> servo amplifier, PC communication
AL-00718251-01
- Connector, Servo, RS2
AL-00718252-01 - Connector, Servo, RS2
AL-00745943-01 - Cable, Servo, RF2, 2M, Power Input Cable

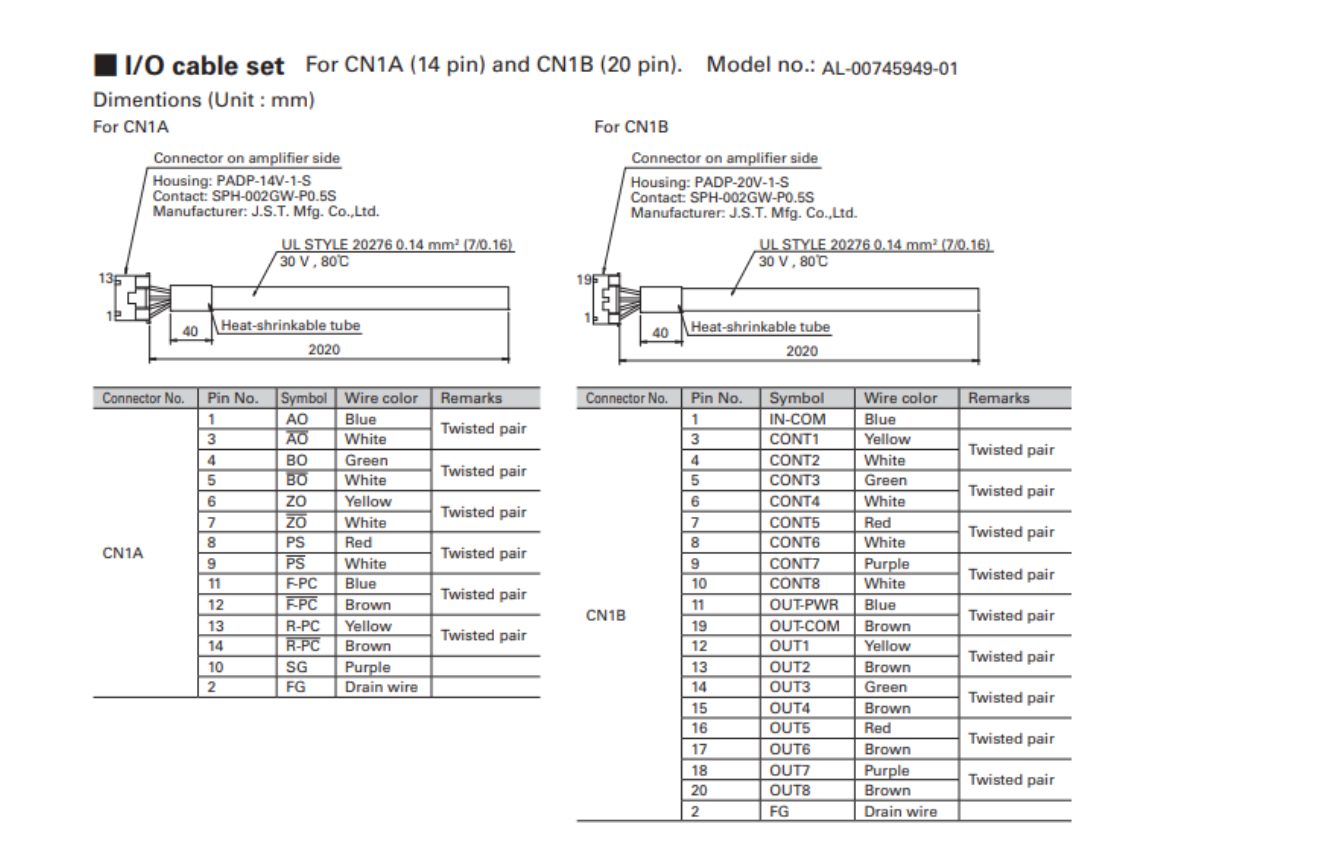

AL-00745949-01 -
Cable, Servo, RF2, 2M, CN1-A, CN1-B, for I/O
AL-00842383 -
Connector, Servo, RS2

AL-00849548-02 - Connector, Servo, RS2
AL-00880402-01 - Battery
AL-00896515-01
- Cable, Servo, RS3
AL-00911582-01
- Cable, Servo, RS3

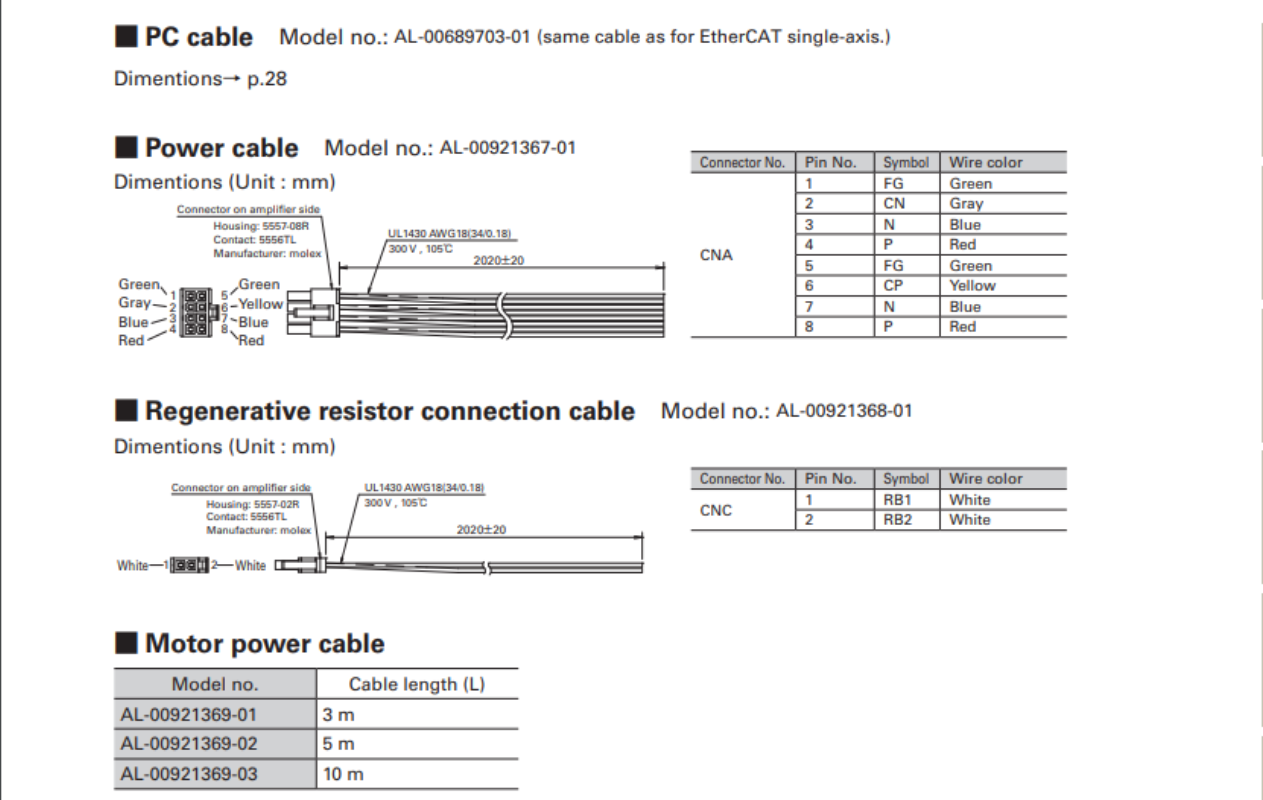

AL-00921367-01
- Cable, Servo, RF2
AL-00921368-01
- Cable, Servo, RF2
AL-00922656 -
Connector
AL-00922658 -
Connector
AL-00922660 -
Connector, Servo, RF2, MOT1

AL-00922662 - Connector, Servo, RF2 , I/O

AL-01005600-01 - Connector, For SMC100-A/B power input
AL-01005600-02 -
Connector, For SMC100-A/B I/O
AL-Y0000988-01 - Connector
AL-Y0004079-01
- Connector, Servo, RS2
AL-Y0004290-02 -
Connector
AL-Y0005159-01
- Connector, Servo, RS2
AL-Y0010913-01 -
Connector, Servo, RS2, CNA, High-Speed Field-Bus, EtherCAT, CNA
_____________________________________________________________________________________________________________________

Options:
AL-00329458-01, AL-00329461-01, AL-00385594, AL-00385596, AL-00490833-01, AL-00494635-01, AL-00591171-01,
AL-00632607, AL-00686902-01, AL-00689703-01, AL-00718251-01, AL-00718252-01, AL-00745943-01, AL-00745949-01,
AL-00842383, AL-00849548-02, AL-00880402-01, AL-00896515-01,
AL-00911582-01, AL-00921367-01, AL-00921368-01, AL-00922656, AL-00922658, AL-00922660, AL-00922662,
AL-01005600-01, AL-01005600-02,
AL-Y0000988-01, AL-Y0004079-01, AL-Y0004290-02, AL-Y0005159-01, AL-Y0010913-01
