CUI: Modular Incremental Encoders (AMT10-V Kit Series)
CUI: Modular Incremental Encoders (AMT10-V Kit Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AMT10-V
.

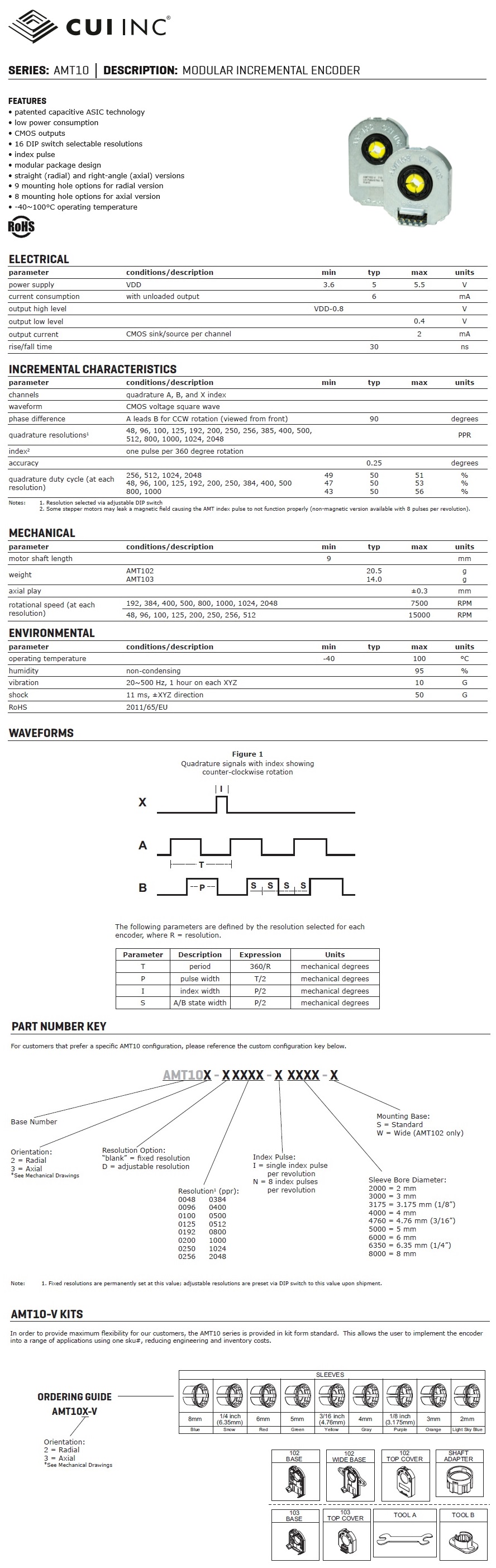

Description Specifications and Drawings


CUI: AMT10-V Kit
28 mm, 48 ~ 2048 PPR, Incremental, Capacitive Modular Encoder Kit

CUI's AMT10-V Kit Series is a rugged, high accuracy incremental encoder designed with maximum flexibility in mind. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and base plates with multiple pre-drilled mounting hole pattern to mate with a wide range of motors. Coupled with an on-board dip switch offering a selectable resolution range of 48 to 2048, the AMT102-V and AMT103-V kits provide engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.


Features:

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Simple assembly

  • 16 programmable resolutions via on-board dip switch

  • 9 different shaft sizes from 2 mm to 8 mm

  • Multiple mounting options

  • Quadrature A, B

  • -40 to +100°C temperature range

Specifications:

  • Input Voltage (Vdc): 3.6 ~ 5.5

  • Operating Temp. (°C): -40 ~ 100

  • Speed, Max. (RPM)a: 7500
