CUI: Modular Incremental Encoders (AMT11 Series)
CUI: Modular Incremental Encoders (AMT11 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AMT11
.

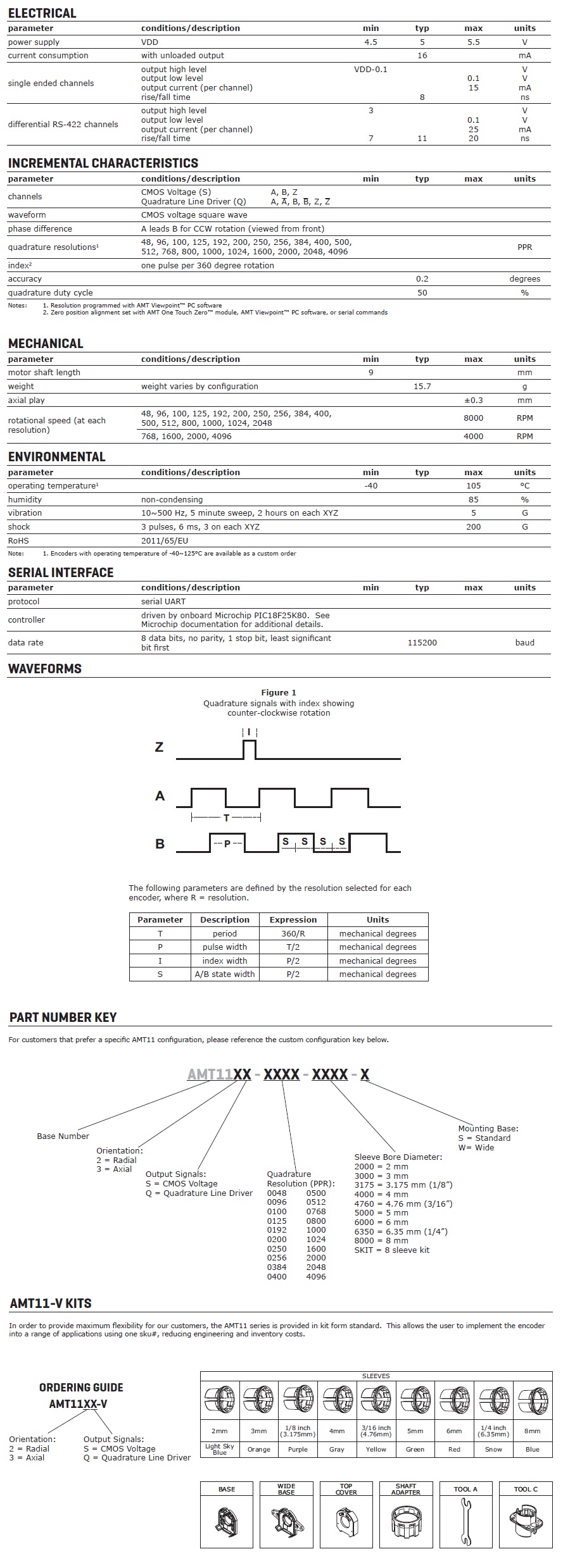

Description Specifications and Drawings


CUI: AMT11 Series
28 mm, 48 ~ 4096 PPR, Incremental, Capacitive Modular Encoder

CUI's AMT11 Series is a rugged, high accuracy incremental encoder designed to address a number of challenges encountered in motion control applications. Thanks to the innovative AMT platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT's design also simplifies the assembly process, reducing the time consuming tasks of mounting and alignment to mere seconds. Combined with an operating temperature range of -40°C to 105°C, high accuracy, a compact package, and low current draw, the AMT provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications. "


Features:

  • Patented capacitive ASIC technology

  • Resolutions programmable with AMT Viewpoint™ PC software

  • Differential line driver versions

  • Digitally set zero position

  • Radial and axial cable connections

  • 7 different mounting hole options

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Modular locking hub design for simple assembly

  • 20 programmable resolutions up to 4096 PPR

  • Quadrature A, B

  • -40 to +105°C temperature range

  • Compatible with AMT Viewpoint™ GUI

Specifications:

  • Input Voltage (Vdc): 4.5 ~ 5.5

  • Operating Temp. (°C): -40 ~ 105

  • Speed, Max. (RPM): 8000
