CUI: Modular Incremental Encoders (AMT11-V Kit Series)
CUI: Modular Incremental Encoders (AMT11-V Kit Series)


Price: (Members Only)


Order #: AMT112Q-V
Qty:

Description Specifications and Drawings

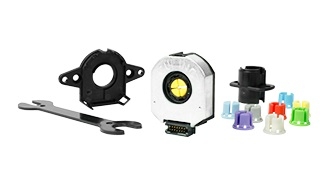

CUI: AMT11-V Kit
28 mm, 48 ~ 4096 PPR, Incremental, Capacitive Modular Encoder Kit

CUI's AMT11-V Kit Series is a rugged, high accuracy incremental encoder designed with maximum flexibility in mind. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and base plates with multiple pre-drilled mounting hole pattern to mate with a wide range of motors. Coupled with selectable resolution range of 48 to 4096 via CUI's AMT Insight GUI, the AMT112-V and AMT113-V kits provide engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.


Features:

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Modular locking hub design for simple assembly

  • 20 programmable resolutions up to 4096 PPR

  • 9 different shaft sizes from 2 mm to 8 mm

  • Multiple mounting options

  • Quadrature A, B

  • -40 to +105°C temperature range

  • Compatible with AMT Viewpoint™ GUI

Specifications

  • Input Voltage (Vdc): 4.5 ~ 5.5

  • Operating Temp. (°C): -40 ~ 105

  • Speed, Max. (RPM): 8000
