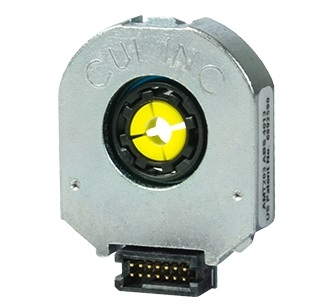

CUI: Modular Absolute Encoders (AMT20 Series)
CUI: Modular Absolute Encoders (AMT20 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AMT20
.

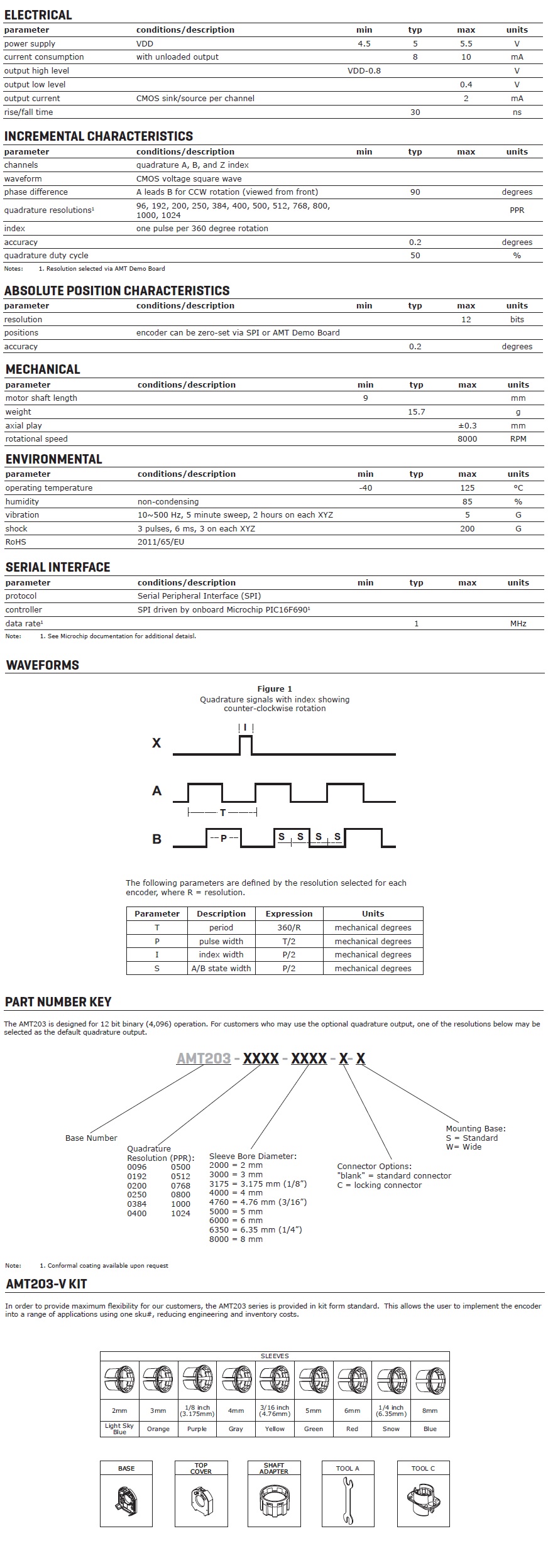

Description Specifications and Drawings


CUI: AMT20 Series
28 mm, 12 Bit, Absolute, Capacitive Modular Encoder

CUI's AMT20 Series is a rugged, high accuracy absolute encoder outputting 12 bits of absolute position information. The series is designed to address a number of challenges encountered in motion control applications. Thanks to the innovative AMT platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT's design also simplifies the assembly process, reducing the time consuming tasks of mounting and alignment to mere seconds with the "One Touch Zero" feature. Combined with an operating temperature range of -40°C to 125°C, high accuracy, a compact package, and low current draw, the AMT provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Features:

  • 12-bit absolute (4096) position

  • Programmable incremental output

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Modular locking hub design for simple assembly

  • One Touch Zero™ set

  • -40 to +125°C temperature range

  • SPI communication

Specifications:

  • Input Voltage (Vdc): 4.5 ~ 5.5

  • Operating Temp. (°C): -40 ~ 125

  • Speed, Max. (RPM): 8000
