CUI: Commutation Encoders (AMT31-V Kit Series)
CUI: Commutation Encoders (AMT31-V Kit Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AMT31-V
.

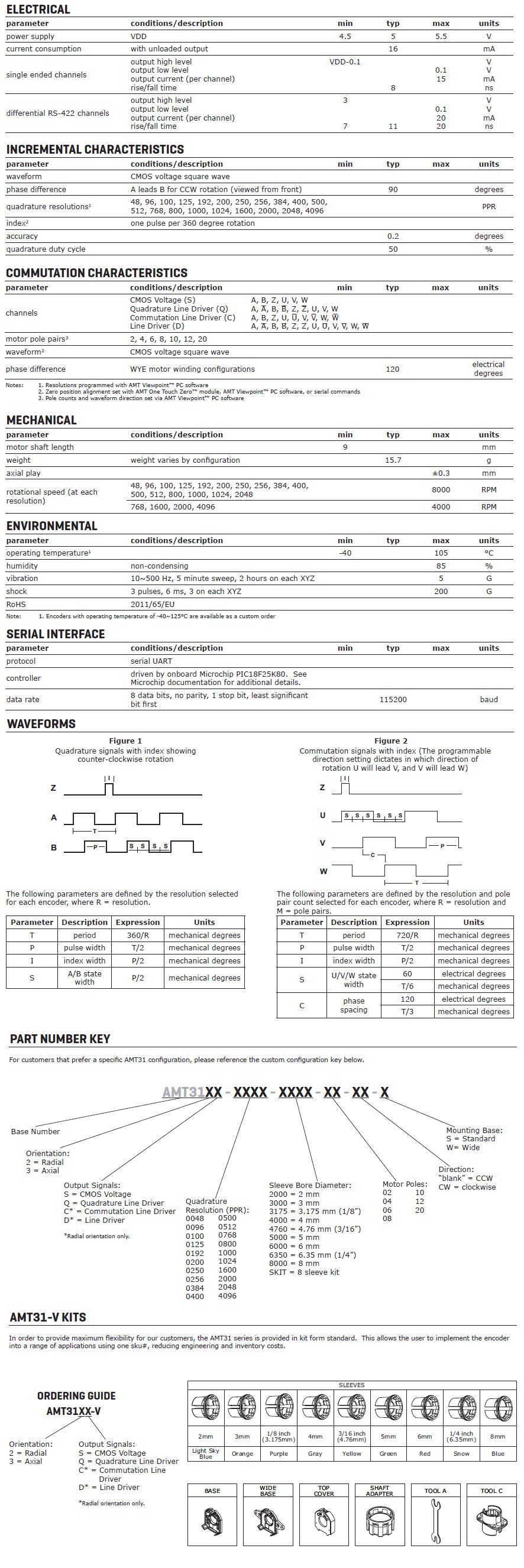

Description Specifications and Drawings


CUI: AMT31-V Kit
28 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder Kit

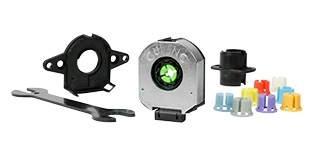

CUI's AMT31-V Kit Series is a rugged, high accuracy encoder that generates standard U/V/W signals for commutating brushless DC motors. Designed to maximize flexibility, the kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and base plates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set a range of parameters via GUI or SPI interface, the AMT31-V Kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Features:

  • Three phase U, V, W commutation signals

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Modular locking hub design for simple assembly

  • Programmable incremental output

  • Digitally set zero position with AMT One Touch Zero™ module

  • 9 different shaft sizes from 2 mm to 8 mm

  • -40 to +105°C temperature range

  • Compatible with AMT Viewpoint™ GUI

Specifications:

  • Input Voltage (Vdc): 4.5 ~ 5.5

  • Operating Temp. (°C): -40 ~ 105

  • Speed, Max. (RPM): 8000
