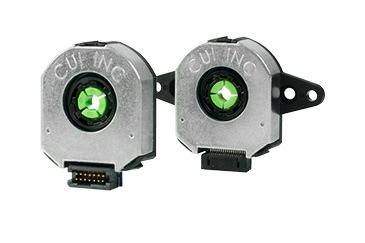

CUI: Commutation Encoders (AMT31 Series)
CUI: Commutation Encoders (AMT31 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: AMT31
.

Description Specifications and Drawings


CUI: AMT31 Series
28 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder

CUI's AMT31 Series is a rugged, high accuracy encoder that generates standard U/V/W signals for commutating brushless DC motors. The series is designed to address a number of challenges encountered in BLDC applications. Thanks to the innovative AMT platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT's design also simplifies the assembly process, removing the need to conduct back-EMF, and allowing a number of parameters to be set via GUI or the encoder's serial interface, including pole count, commutation angle and zero position. Combined with an operating temperature range of -40°C to 105°C, high accuracy, a compact package, and low current draw, the AMT provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Features:

  • Three phase U, V, W commutation signals

  • High accuracy

  • Resilient to dust, dirt and oil

  • Compact design

  • Low current draw

  • Modular locking hub design for simple assembly

  • Programmable incremental output

  • Digitally set zero position with AMT One Touch Zero™ module

  • -40 to +105°C temperature range

  • Compatible with AMT Viewpoint™ GUI

Specifications:

  • Operating Temp. (°C): -40 ~ 105

  • Speed, Max. (RPM): 8000

  • Input Voltage (Vdc): 4.5 ~ 5.5
