Copley Controls: CANopen Accelnet Plus Module, 2-Axis (AP2 Series)
Copley Controls: CANopen Accelnet Plus Module, 2-Axis (AP2 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Availability: Subject to availability
Order #: AP2


Model No.:


.

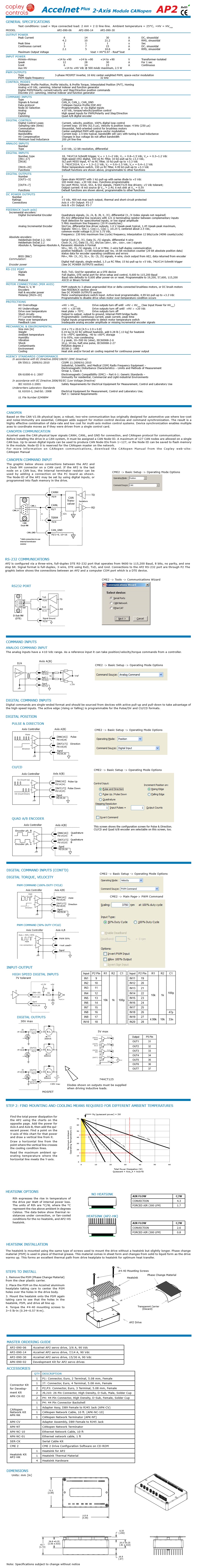

Description Specifications and Drawings


Copley Controls: Accelnet Plus Module, 2-Axis (AP2 Series)

14-90V VDC CANopen Drives for Brushless Motors


Description

Accelnet AP2 is a high-performance, DC powered servo drive for position, velocity, and torque control of brushless and brush motors. Using advanced FPGA technology, the AP2 provides a significant reduction in the cost per node in multi-axis CANopen systems.

each of the two nodes in the AP2 operates as an CANopen node using the CANopen protocol dSp-402 for motion control devices. Supported modes include: profile position-velocity-torque, interpolated position mode (pvt), and Homing.

Command sources also include ±10v analog torque/velocity/ position, PWM torque/velocity, and stepper command pulses. Feedback from a number of incremental and absolute encoders is supported.

Seventeen high-speed digital inputs with programmable functions are provided, and two low-speed inputs for motor temperature switches.

An Sli (Switch & led interface) function is supported by another high-speed input and four high-speed digital outputs. if not used for Sli, the input and outputs are programmable for other functions. three open-drain MOSFET can drive loads powered up to 24 Vdc.

An RS-232 serial port provides a connection to Copley’s Cme2 software for commissioning, firmware upgrading, and saving configurations to flash memory.

drive power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input is provided for “keep-alive” operation permitting the drive power stage to be completely powered down without losing position information, or communications with the control system.

Control modes

  • Profile Position-Velocity-Torque, Interpolated Position, Homing

  • Camming, Gearing

  • Indexer

Command interface

  • CANopen

  • ASCII and discrete I/O

  • Stepper commands

  • ±10V position/velocity/torque command

  • PWM velocity/torque command

  • Master encoder (Gearing/Camming)

Communications

  • CANopen • RS-232

Feedback

  • Digital quad A/B encoder, Analog sin/cos incremental, Panasonic incremental A Format

  • SSI, EnDat, Absolute A, Tamagawa & Panasonic Absolute A, Sanyo Denki Absolute A, BiSS

  • Aux. encoder

  • Digital Halls

I/O

  • Digital: 20 inputs, 7 outputs

  • Analog: 2, 12-bit inputs

Dimensions: mm [in]

  • 114 x 73 x 20.6 [4.5 x 2.9 x 0.8]


Model No.: AP2-090-06, AP2-090-14, AP2-090-30
