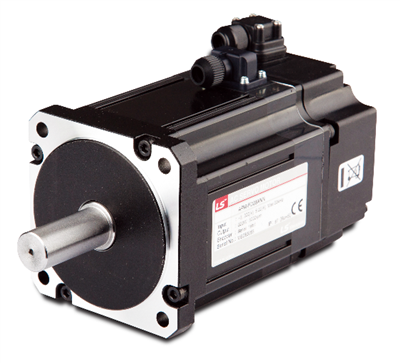

LS Mecapion: Brushless Servo Motor (APMC-FBL04AMK)
LS Mecapion: Brushless Servo Motor (APMC-FBL04AMK)


Price: (Members Only)


Availability: Lead time 5-6 weeks
Order #: APMC-FBL04AMK
Qty:

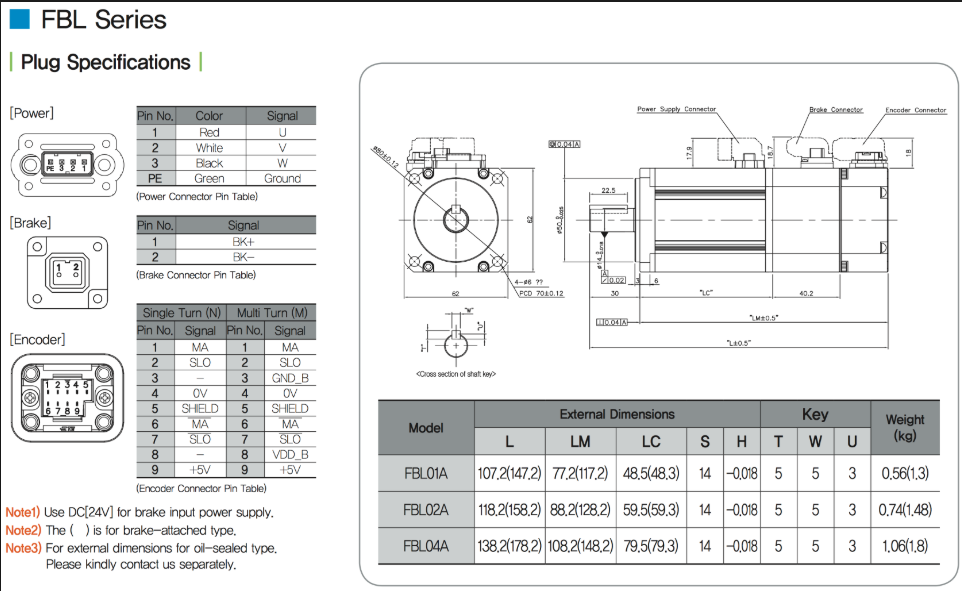

Description Ordering Information Specifications and Drawings


LS Mecapion: Brushless Servo Motor (APMC-FBL04AMK)

Specifications:

· Flange Size: 60 mm

· Rated power: 0.4 kW

· torque: 1.27 Nm

· Rated/Max current: 2.58/7.75 A

· Rated/Max rpm: 3000/5000 [rpm]

· Speed, Position transducer: Serial type 19 Bit

· Weight: 1.52 Kg
