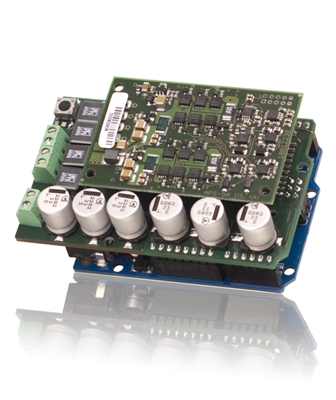

Phytron: Stepper Motor Power Stage (APS with Arduino APS-Shield)

Arduino-Shield for APS 24-70 V(DC) 5A peak stepper motor power stage


The Arduino APS-Shield connects the Arduino platform with our high performance stepper motor power stage APS. The Arduino Shield and the APS power stage achieve high precision positioning combined with smooth running up to 5Apeak, 70V(DC). Combining these capabilities, the APS Shield empowers you to attain highly ambitious applications in science, prototyping, model making or installation art.


Technical Specifications

  • APS power stage parameters and diagnostics via SPI
  • Control pulses and direction signal comes from the digital pins of the Arduino
  • Connection: Power supply, motor, PCB connectors for the APS power stage
  • Reset button

Support Links
24-70 V(DC) 5A
