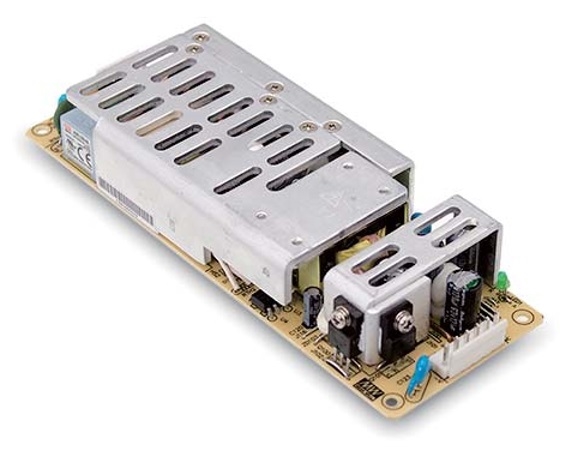

Mean Well: Open Frame Switching Power Supply (ASP-150 Series)
Mean Well: Open Frame Switching Power Supply (ASP-150 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: ASP-150


Model No.:

.

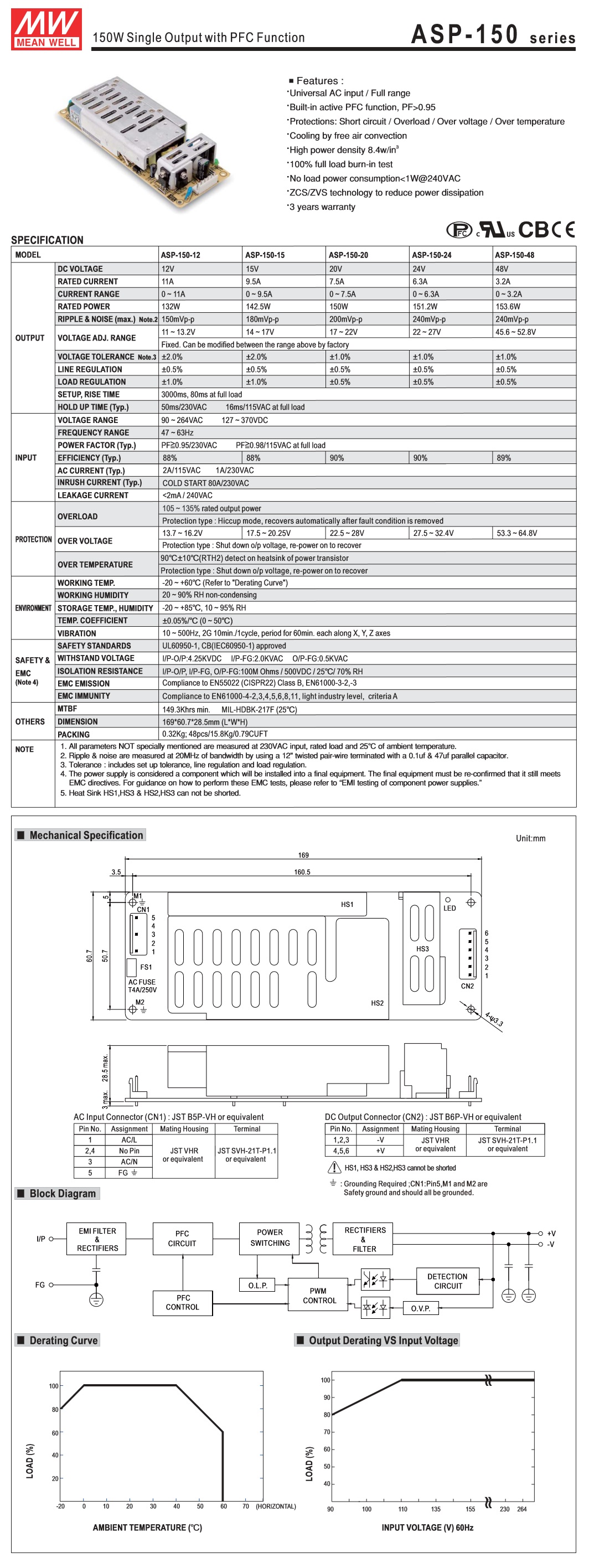

Description Specifications and Drawings


Mean Well: Open Frame Switching Power Supply (ASP-150 Series)

Features:

  • Universal AC input/Full range

  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature

  • Cooling by free air convection

  • 100% full load burn-in test

  • PCB type, non-PFC for small wattage models

  • Multiple form factors for different installations: 7”* 4.25”, 5”* 3”, 4”* 2”, slim type

  • Watts: 5W~250W


Model No.: ASP-150-12, ASP-150-15, ASP-150-20, ASP-150-24, ASP-150-48
Support Links
ASP-150 -12:132W,input AC90-264V/DC127-370V,out put 12VDC,11A
ASP-150 -15:142.5W,input AC90-264V/DC127-370V,out put 15VDC,9.5A
ASP-150 -20:150W,input AC90-264V/DC127-370V,out put 20VDC,7.5A
ASP-150 -24:151.2W,input AC90-264V/DC127-370V,out put 24VDC,6.3A
