Mitutoyo: AT112-F Linear Scales (539 Series)
Mitutoyo: AT112-F Linear Scales (539 Series)


Price: (Members Only)


Availability: Subject to Availability
Order #: AT112-F


Model No.:

Qty:

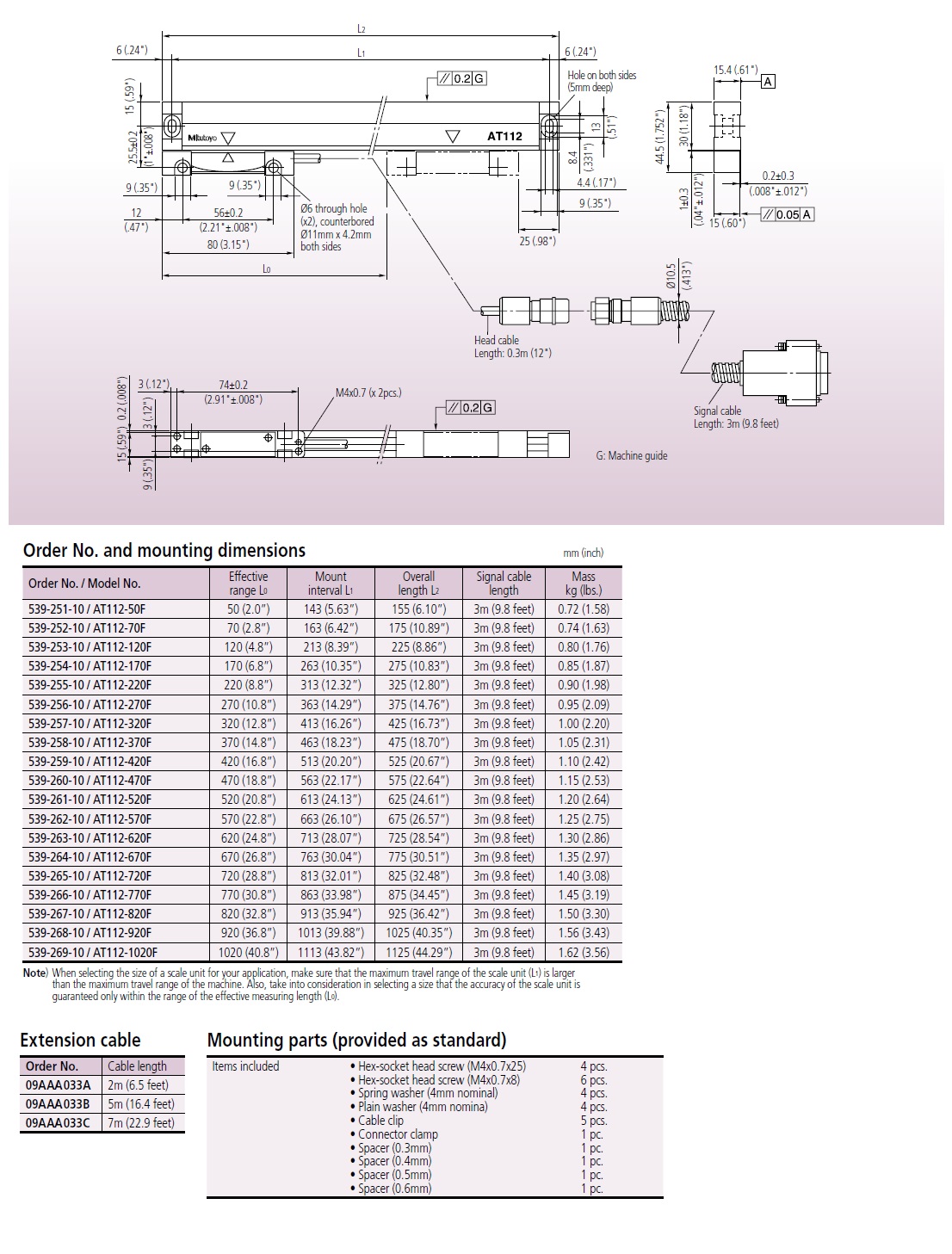

Description Specifications and Drawings

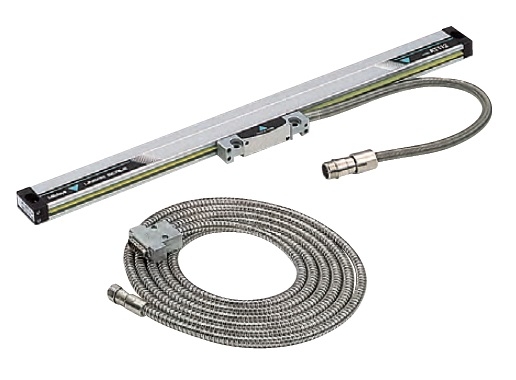

Mitutoyo: AT112-F Linear Scales (539 Series) Super Slim Spar Type

Features

  • Super slim spar type with unit sectional dimensions of 15.4×30mm.

  • Connectable to the KA counter, KLD counter, or PSU-200.

Technical Data

  • Effective range: 1.5 - 40" (50 - 1020mm)

  • Accuracy at 20ºC: High-accuracy type (3+3L/1000)µm

  • L = Effective range (mm)

  • Output waveform: Two 90º phase-shifted sinusoidal signals

  • Maximum response speed: 72m/min.

  • Scale grating pitch: 20µm

  • Scale reference point pitch: 50mm

  • Dust/water protection level: IP53

  • Operating temperature: 0ºC to 45ºC

Optional Accessories

  • 09AAA033A: Extension cable (80"/ 2m)

  • 09AAA033B: Extension cable (200" / 5m)

  • 09AAA033C: Extension cable (280" / 7m)

Model No.: 539-251-10, 539-252-10, 539-253-10, 539-254-10, 539-255-10, 539-256-10, 539-257-10, 539-258-10, 539-259-10, 539-260-10, 539-261-10, 539-262-10, 539-263-10, 539-264-10, 539-265-10, 539-266-10, 539-267-10, 539-268-10, 539-269-10
