Mitutoyo: AT116 Linear Scales (539 Series)
Mitutoyo: AT116 Linear Scales (539 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Availability: Subject to Availability
Order #: AT116


Model No.:

.

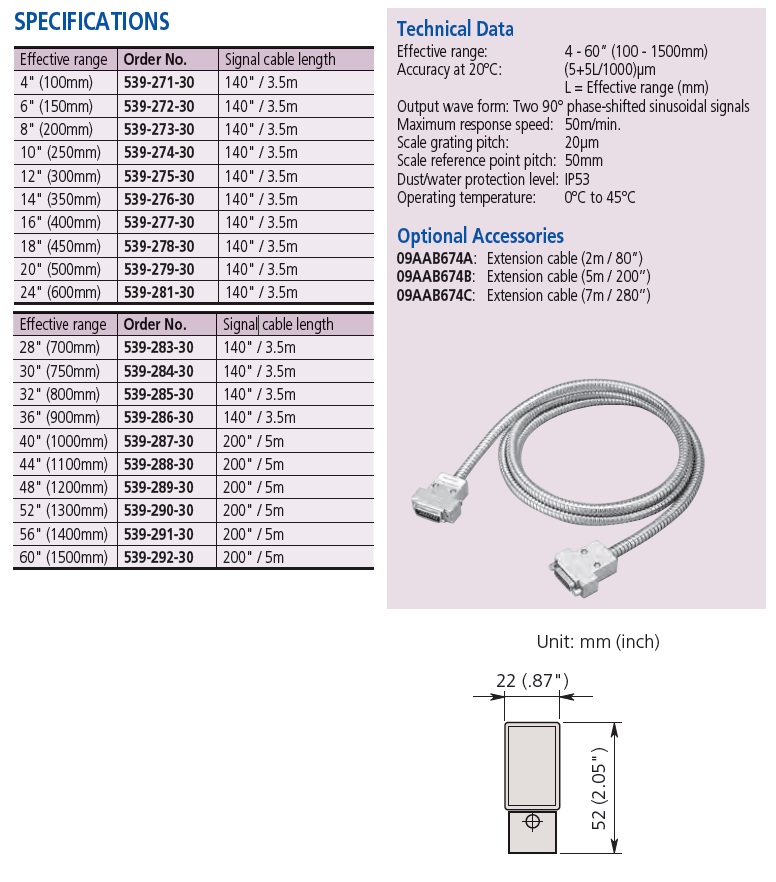

Description Specifications and Drawings

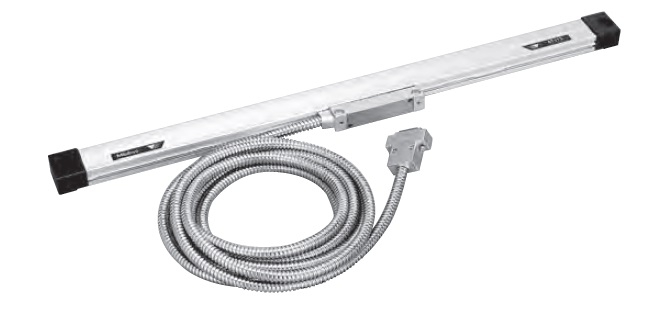

Mitutoyo: AT116 Linear Scales (539 Series) Economy and Slim Spar Type

Features

  • Suitable for milling machines, XY tables, jigs, etc.

  • Dimensionally compatible with AT111 linear scale units.

Technical Data

  • Effective range: 4 - 60"(100-1500mm)

  • Accuracy at 20 ̊C: (5+5L/1000)µm

  • L = Effective range (mm)

  • Output wave form: Two 90 ̊ phase-shifted sinusoidal signals

  • Maximum response speed: 50m/min.

  • Scale grating pitch: 20µm

  • Scale reference point pitch: 50mm

  • Dust/water protection level: IP53

  • Operating temperature: 0 ̊C to 45 ̊ C

Optional Accessories

  • 09AAB674A: Extension cable (2m)

  • 09AAB674B: Extension cable (5m)

  • 09AAB674C: Extension cable (7m)


Model No.: 539-271-30, 539-272-30, 539-273-30, 539-274-30, 539-275-30, 539-276-30, 539-277-30, 539-278-30, 539-279-30, 539-281-30, 539-283-30, 539-284-30, 539-285-30, 539-286-30, 539-287-30, 539-288-30, 539-289-30, 539-290-30, 539-291-30, 539-292-30
