Mitutoyo: AT181 Linear Scales (539 Series)
Mitutoyo: AT181 Linear Scales (539 Series)


Price: (Members Only)


Availability: Subject to Availability
Order #: AT181


Model No.:

Qty:

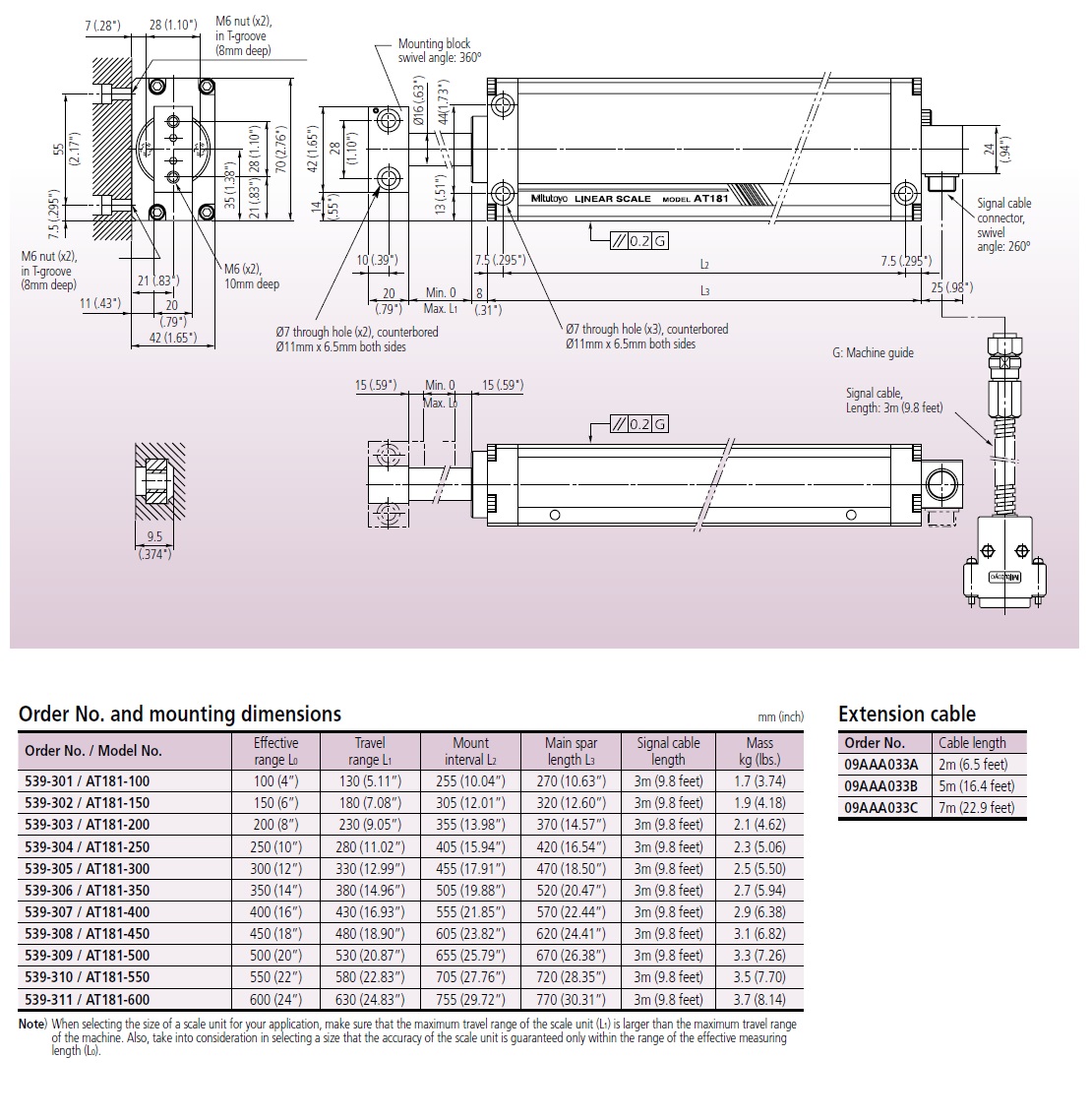

Description Specifications and Drawings

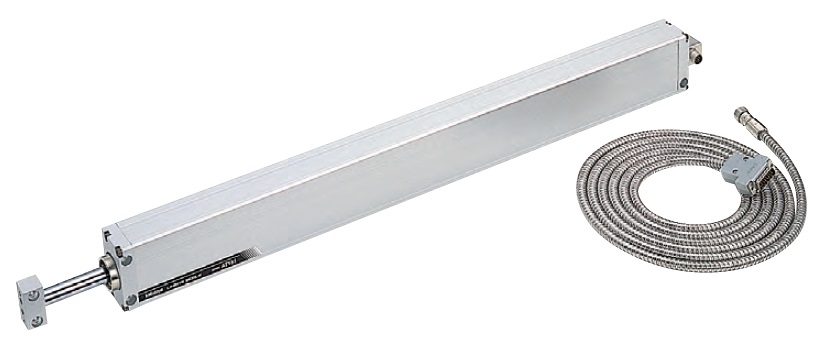

Mitutoyo: AT181 Linear Scales (539 Series) Sealed Type/Plunger

Features

  • Plunger type in the fully sealed structure.

  • Connectable to the KA counter, KLD counter, or PSU-200.

Technical Data

  • Effective range: 4 - 24” (100 - 600mm)

  • Accuracy at 20ºC: Standard type (5+5L/1000)µm

  • L = Effective range (mm)

  • Output wave form: Two 90ºphase-shifted sinusoidal signals

  • Maximum response speed: 50m/min.

  • Scale grating pitch: 20µm

  • Scale reference point pitch: 50mm

  • Dust/water protection level: IP54

  • Operating temperature: 0ºC to 45ºC

Optional Accessories

  • 09AAA033A: Extension cable (80” / 2m)

  • 09AAA033B: Extension cable (200” / 5m)

  • 09AAA033C: Extension cable (280”/ 7m)

Model No.: 539-301, 539-302, 539-303, 539-304, 539-305, 539-306, 539-307, 539-308, 539-309, 539-310, 539-311
