Mitutoyo: AT211A / AT211B Linear Scales (539 Series) Slim Spar Type

Features

  • High-resolution, high-accuracy sealed type linear scales. Most ideal for feedback control in positioning a semiconductor manufacturing system, CNC machine tool, etc.

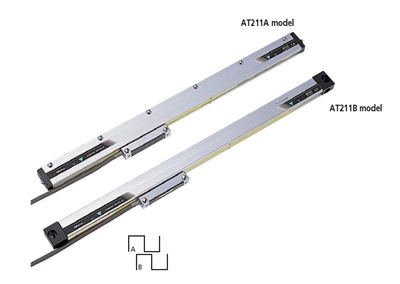

  • Two types of models are available: the AT211-A, the multiple-point installation type designed for improved resistance against vibration and shock, and the AT211-B, which attaches to a machine at both ends. The AT211-B is compatible with the AT111 slim type in size.

Technical Data

  • Effective range: 4 – 60”(100 - 1500mm)

  • Output signal: Two 90° phase-shifted quadrature signals

  • Maximum response speed: 5.4 - 120m/min.

  • Resolution: 0.1, 0.2, 0.5, 1, 2.5, 5µm

  • Signal output pitch: 20µm

  • Dust/Water protection level: IP53

  • Accuracy at 20ºC:

  • Effective range | Standard type | High-accuracy type

  • 100 to 500mm | (3+3L/1000)µm | (2+2L/1000)µm

  • 500 to 1500mm | (3+3L/1000)µm | —

  • L = Effective range (mm)

Model No.: 539-701AC1 (100mm), 539-701AC2 (100mm), 539-702AC1 (150mm), 539-702AC2 (150mm), 539-703AC1 (200mm), 539-703AC2 (200mm), 539-704AC1 (250mm), 539-704AC2 (250mm), 539-704B (250mm), 539-705AC1 (300mm), 539-706AC1 (350mm), 539-706AC2 (350mm), 539-707AC1 (400mm), 539-707AC2 (400mm), 539-708AC1 (450mm), 539-708AC2 (450mm), 539-709AC1 (500mm), 539-709AC2, 539-711AC1 (600mm), 539-713AC1 (700mm), 539-714AC1 (750mm), 539-715AC1 (800mm), 539-716AC1 (900mm), 539-717AC1 (1000mm), 539-718AC1 (1100mm), 539-719AC1 (1200mm), 539-719AC2 (1200mm), 539-720AC1 (1300mm), 539-721AC1 (1400mm), 539-722AC1 (1500mm), 539-722AC2 (1500mm)
