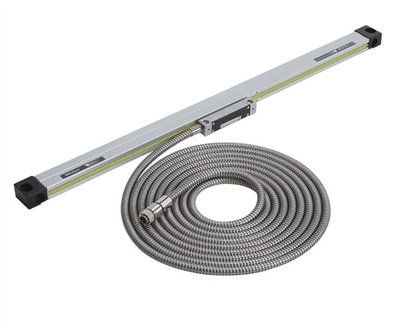

Mitutoyo: AT216-T/AT216-TL Linear Scales (529 Series)
Mitutoyo: AT216-T/AT216-TL Linear Scales (529 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Availability: Subject to Availability
Order #: AT216


Model No.:

.
Description


Mitutoyo: AT216-T / AT216-TL Linear Scales (529 Series) Slim Sealed Type

Features

  • Slim, sealed type incremental linear scales suitable for feedback systems in NC machine tools.

  • Direct connection with NC machine tools is possible.

Specifications

  • Effective range: 100 to 1500mm (20 models)

  • Resolution: AT216-T-5µm / AT216-TL- 1µm

  • Accuracy (20°C): (5+5L0/1000)μm

  • Output signal: Two 90° phase-shifted Square wave signal

  • Maximum response speed: AT216-T- 48m/min / AT216-TL-50m/min

  • Signal output pitch: 20µm

  • Scale reference point: Output in 50mm pitch

  • Protection Level: IP53

  • Operating temperature: 0 to 45°C

Model No.: 529-431-3, 529-432-3, 529-433-3, 529-434-3, 529-435-3, 529-436-3, 529-437-3, 529-438-3, 529-439-3, 529-441-3, 529-443-3, 529-444-3, 529-445-3, 529-446-3, 529-447-3, 529-448-3, 529-449-3, 529-450-3, 529-451-3, 529-452-3, 529-461-3, 529-462-3, 529-463-3, 529-464-3, 529-465-3, 529-466-3, 529-467-3, 529-468-3, 529-469-3, 529-471-3, 529-473-3, 529-474-3, 529-475-3, 529-476-3, 529-477-3, 529-478-3, 529-480-3, 529-481-3, 529-482-3
