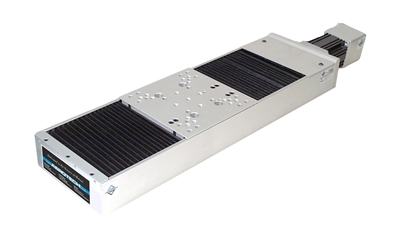

Aerotech: Mechanical-Bearing Ball-Screw Linear Stage (ATS150 Series)
Aerotech: Mechanical-Bearing Ball-Screw Linear Stage (ATS150 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: ATS150


Model No.:


.

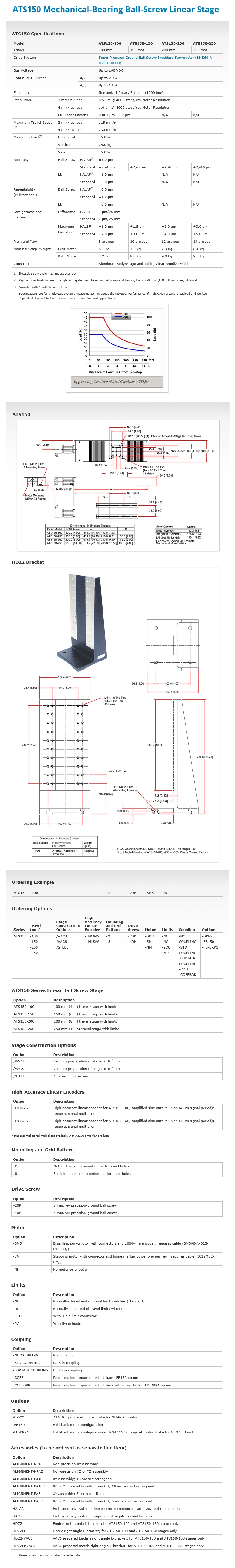

Description Specifications and Drawings


Aerotech: Linear Motor Drive Precision Stage (ATS150 Series)

Linear Stages

Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.

Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

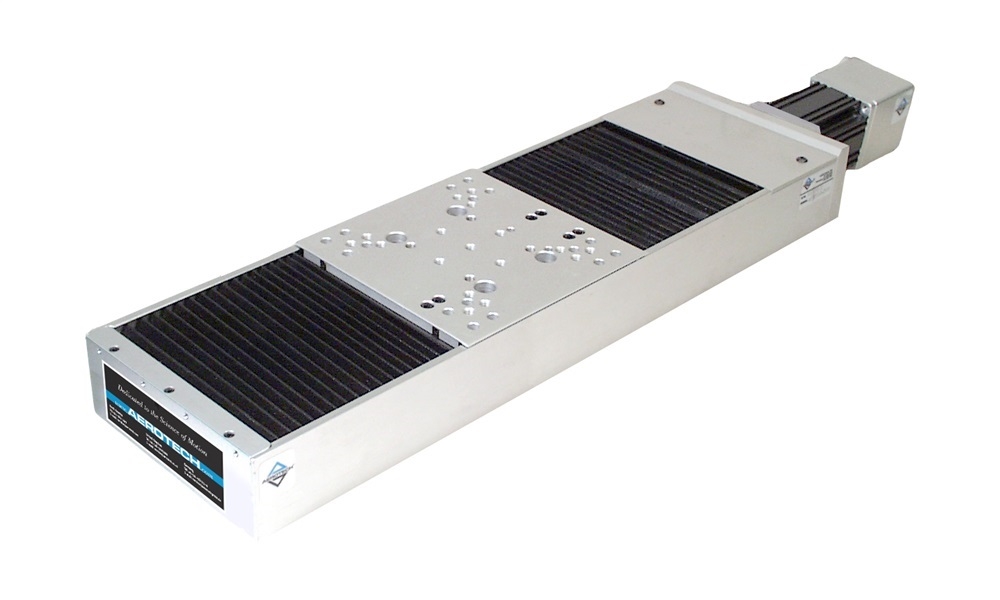

ATS150 Mechanical-Bearing Ball-Screw Linear Stage

Design Features

  • Long life linear motion guide bearing system

  • Ultra-fine resolution

  • Integral bellows waycovers

  • Low-profile compact design

  • Submicron accuracy

  • Optional high-accuracy linear encoder

The ATS150 series motor-driven linear stages provide the high resolution and repeatability required for semiconductor wafer testing and fabrication, automated microscope inspection systems and precision micromachining applications.

Construction Features

ATS150 series stages are machined from a special cast aluminum alloy to provide a high strength-to-weight ratio and long-term stability. The base is a box design that provides exceptional stiffness and stability.

ATS150 series stages employ a precision-ground ball screw that is pre-loaded to eliminate backlash, and its nut has wipers to prevent contamination and maintain high accuracy throughout the life of the stage. High quality, pre-loaded duplex bearings are used to eliminate axial play.

All ATS150 series stages incorporate Linear Motion Guide (LMG) bearings to provide high load capability and high stiffness. The LMG design provides a compact stage with continuous carriage support over the entire travel and good cantilevered load capability. Integral wipers on the bearing trucks help ensure stage travel life. Highly accurate optical limit switches and end stops are also standard.

Integral bellows-type waycovers protect the drive and bearing system from contamination. Metal surfaces are protected with an attractive clear anodized finish. Both metric (standard) and English mounting and bolt-hole patterns are available.

Linear Encoder

A precision noncontact linear encoder is an option. The encoder is mounted internal to the stage, protecting it from external contaminants and debris.

Motors and Drives

Included with all ATS150 series stages are Aerotech’s BMS series brushless rotary motors. This motor has all of the advantages of a brushless motor – high acceleration, no brushes to wear and lower heating – yet has zero cogging for extremely smooth motion and accuracy. Aerotech manufactures a wide range of matching drives and controls to provide a fully integrated and optimized motion solution.

Model No.: ATS150-100, ATS150-150, ATS150-200, ATS150-250
