INTORQ: Spring-Applied Brakes (BFK471 Series)
INTORQ: Spring-Applied Brakes (BFK471 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: BFK471
.

Description Specifications and Drawings


INTORQ: Spring-Applied Brakes (BFK471 Series)

Cost-saving alternative for standard solutions

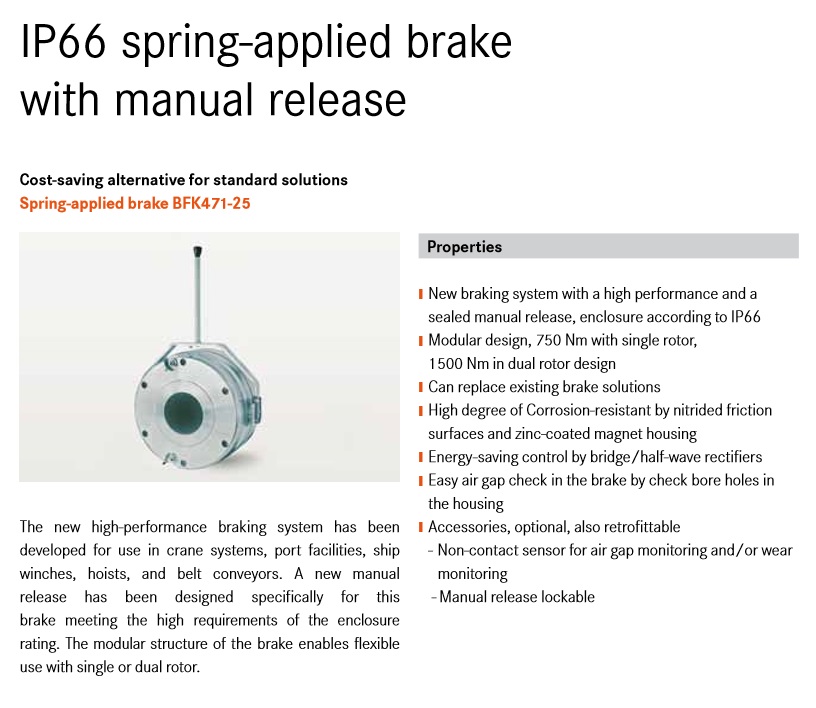

Spring Applied brake BFK471-25
The new high-performance braking system has been developed for use on cranes and port facilities. A new manual release has been designed specifically for this brake meeting the high requirements of the enclosure rating. The modular structure of the brake enables flexible use with single or dual rotor.

Properties:

  • High braking torque and low space requirements

  • 1500 Nm in dual rotor design, 750 Nm with single rotor

  • Enclosure corresponding to IP66, with manual release

  • High degree of corrosion protection

  • Non-contact sensor for air gap monitoring

  • Reduction of the power consumption by up to 75% through control via bridge/half-wave rectifier

  • Can replace existing brake solutions
