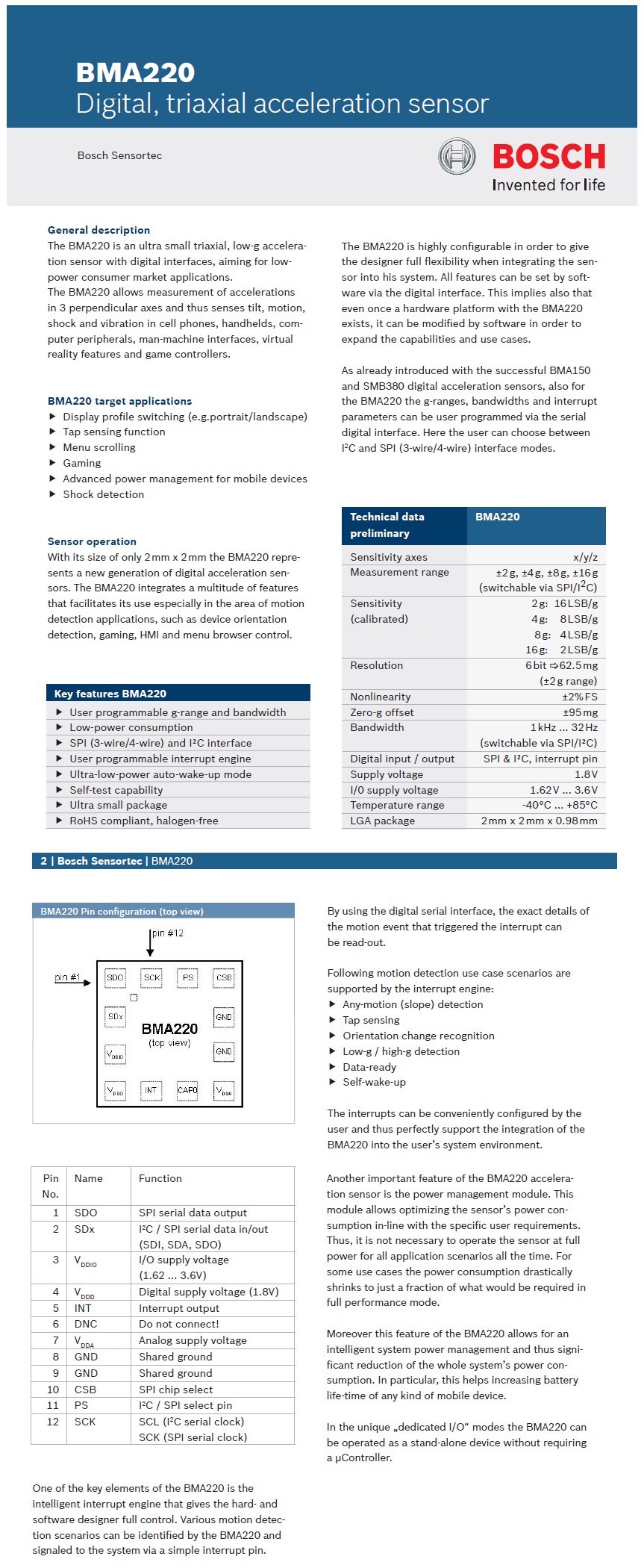

Description Specifications and Drawings


Acal BFi: Digital, 3-axis Accelerometer

The BMA220 is an ultra small tri-axial, low-g acceleration sensor with digital interfaces, aiming for low power consumer market applications. The BMA220 allows measurement of accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in cell phones, handhelds, computer peripherals, man-machine interfaces, virtual reality features and game controllers.

Features

  • User programmable g-range and bandwidth

  • Low-power consumption

  • SPI (3-wire/4-wire) and I²C interface

  • User programmable interrupt engine

  • Ultra-low-power auto-wake-up mode

  • Self-test capability

  • Ultra small package

  • RoHS compliant, halogen-free

Specifications

  • Number of Axes: 3

  • Measurement Range (g): ±2, ±4, ±8, ±16

  • Scale Factor/Sensitivity (LSB/g): 16, 2

  • Cross axis sensitivity (% typ): 2

  • Bandwidth (Hz): 32 to 1000

  • Noise (μg/√Hz): 2000

  • Package: LGA-12

  • Operating Temperature Range (°C): -40 to 85
